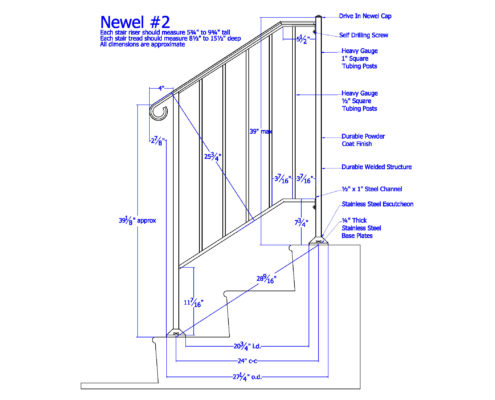

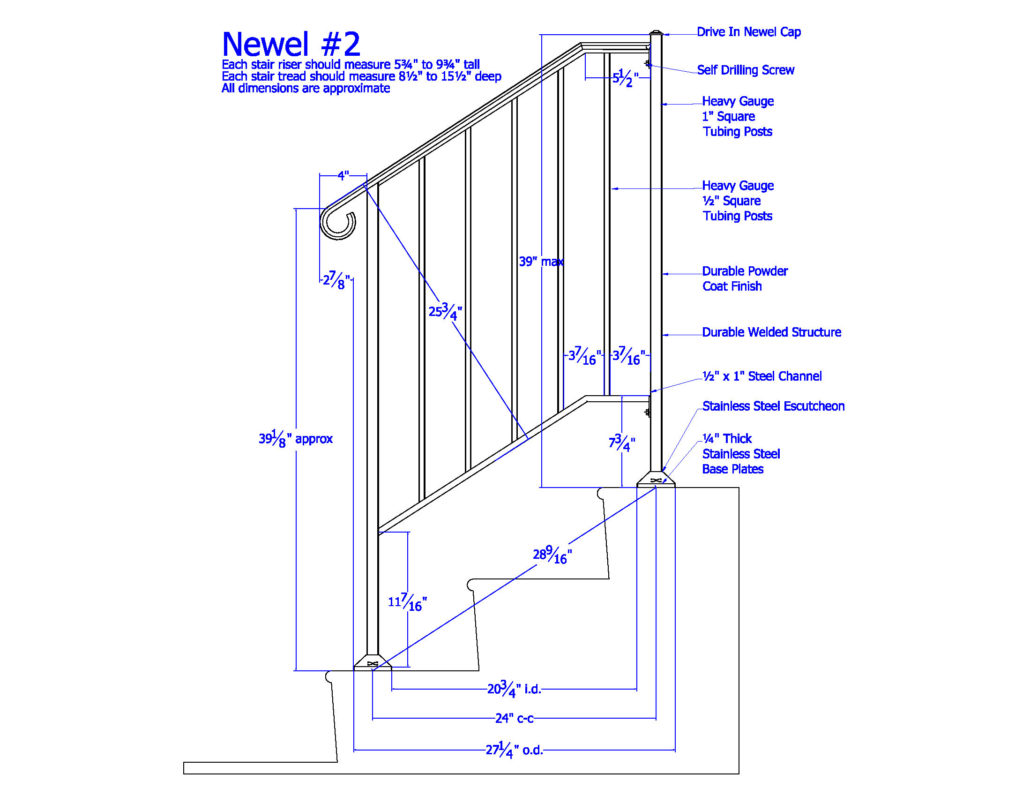

Newel #2

Spans 2 Stair Risers

24″  Post  to  Post  Length

Compatible with Level & Newel Step Rails

NOT Compatible with Standard Step Rails

Your Cost
Includes Shipping

$308.00

$
Add to Build List Add to Build List
Add to Build List
Which Fasteners Should I choose?

Key Features

Welded wrought iron construction
Stronger than aluminum
Rust-proof ¼” thick stainless steel base plate
Stainless steel base plate cover
Durable powder coated matte black finish
Works well indoor or outdoor

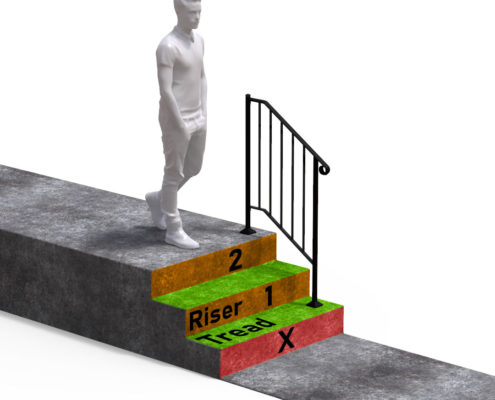

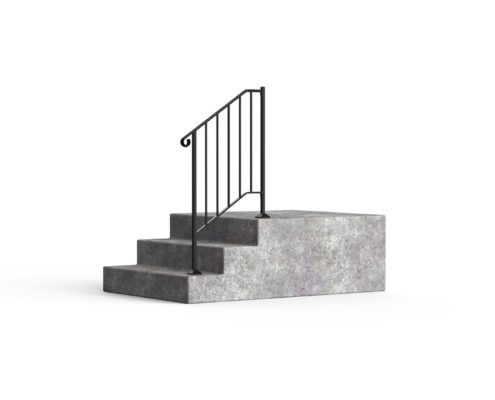

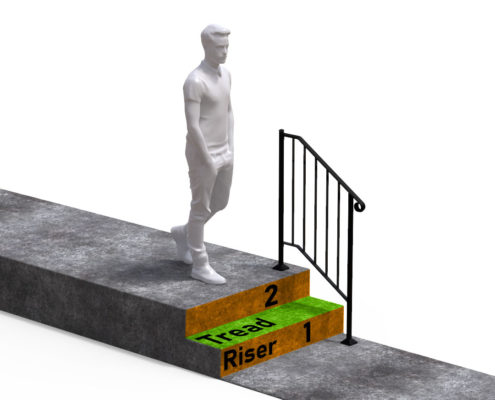

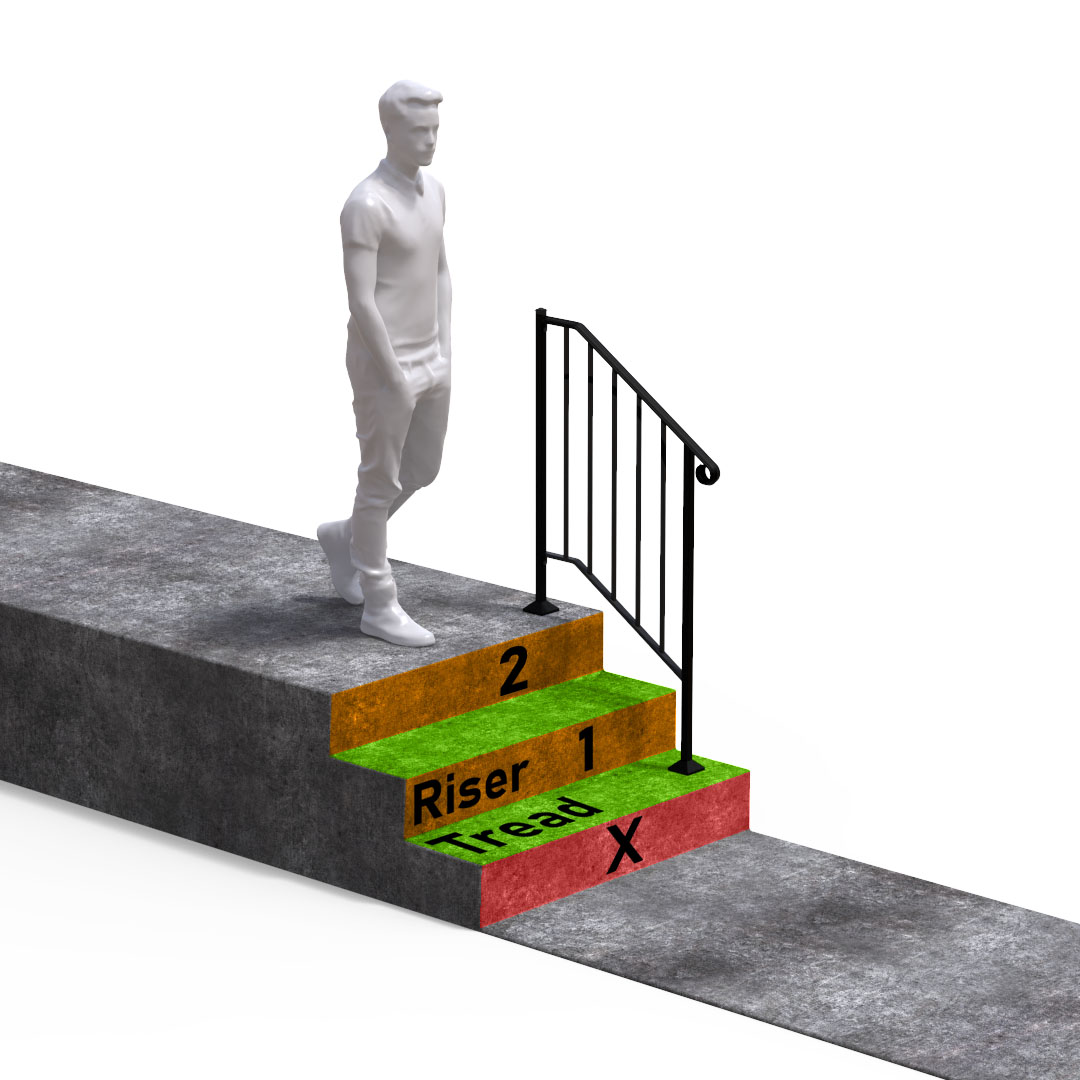

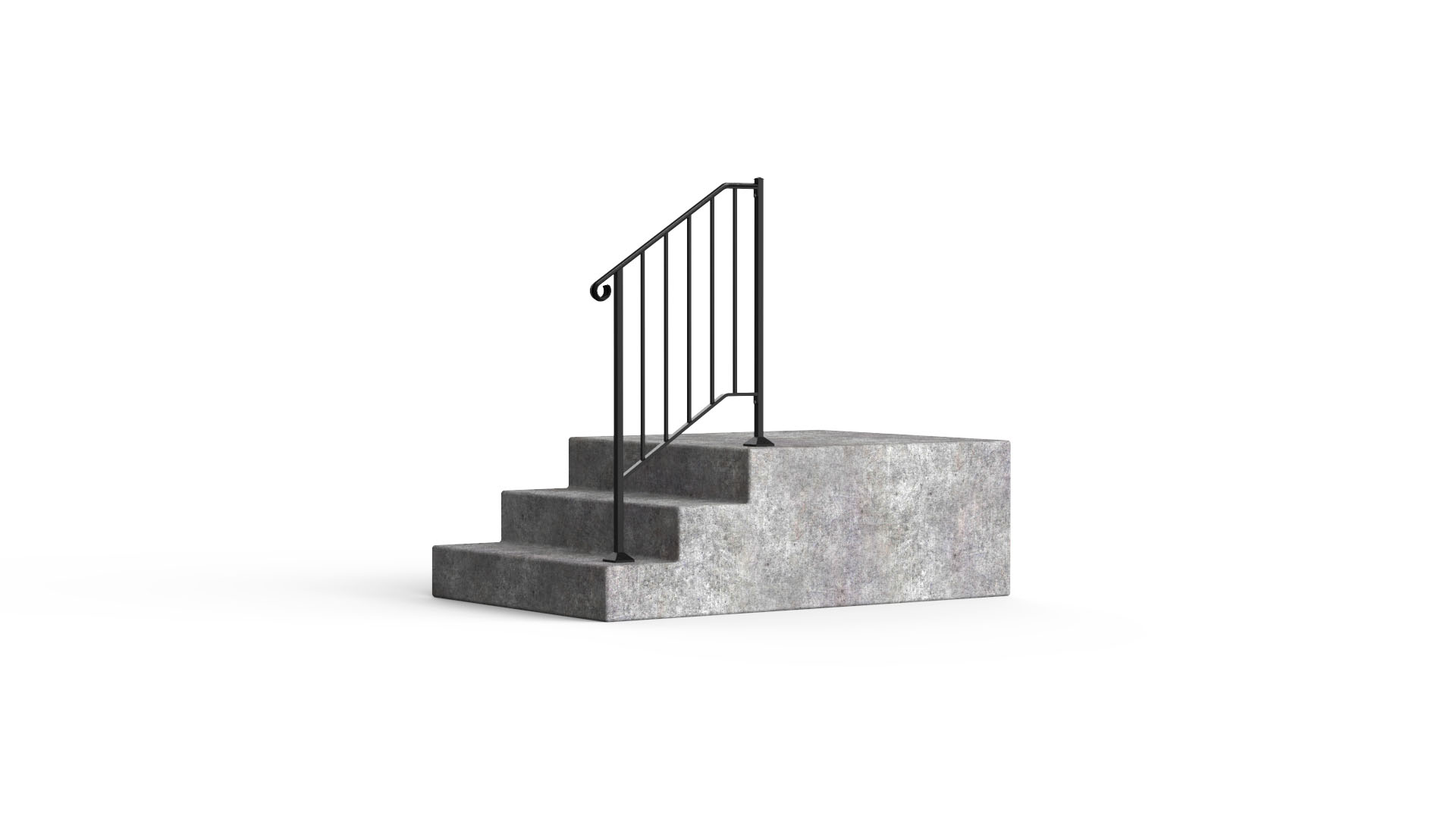

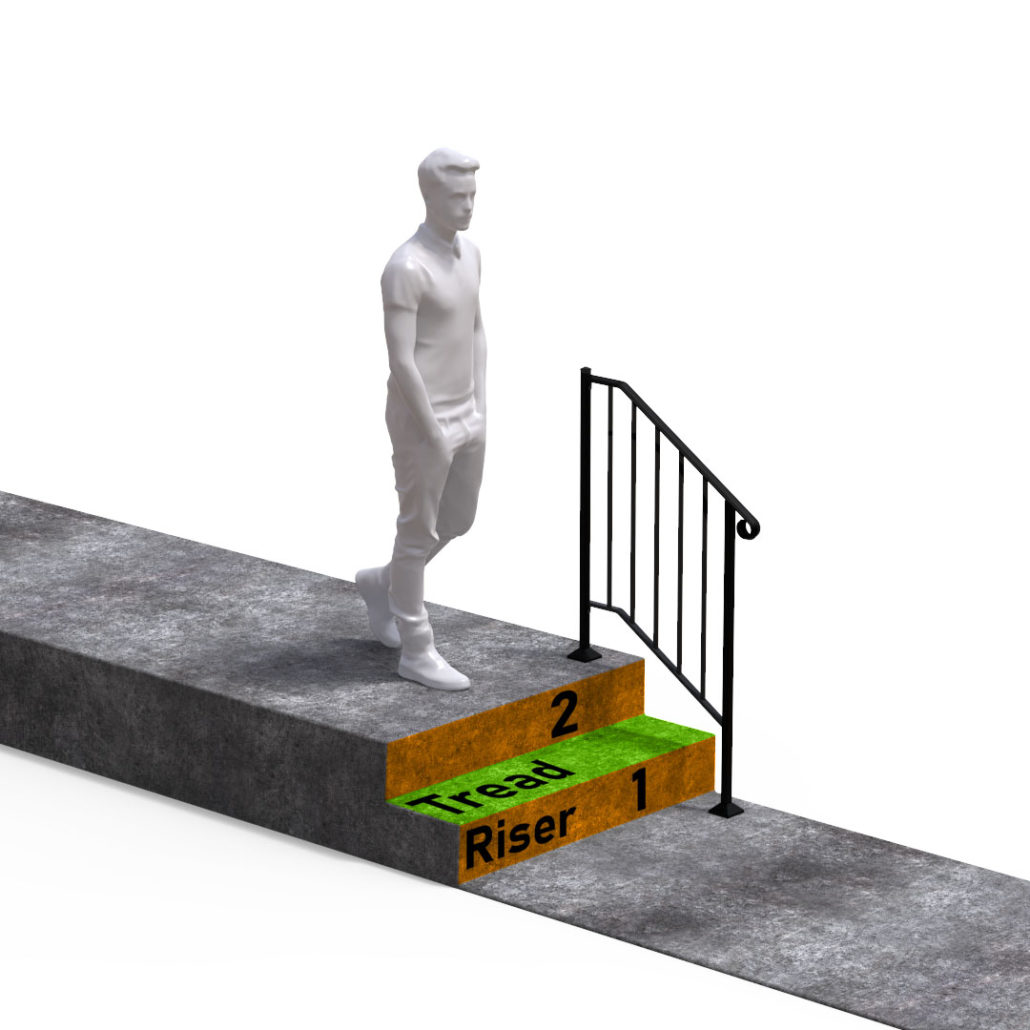

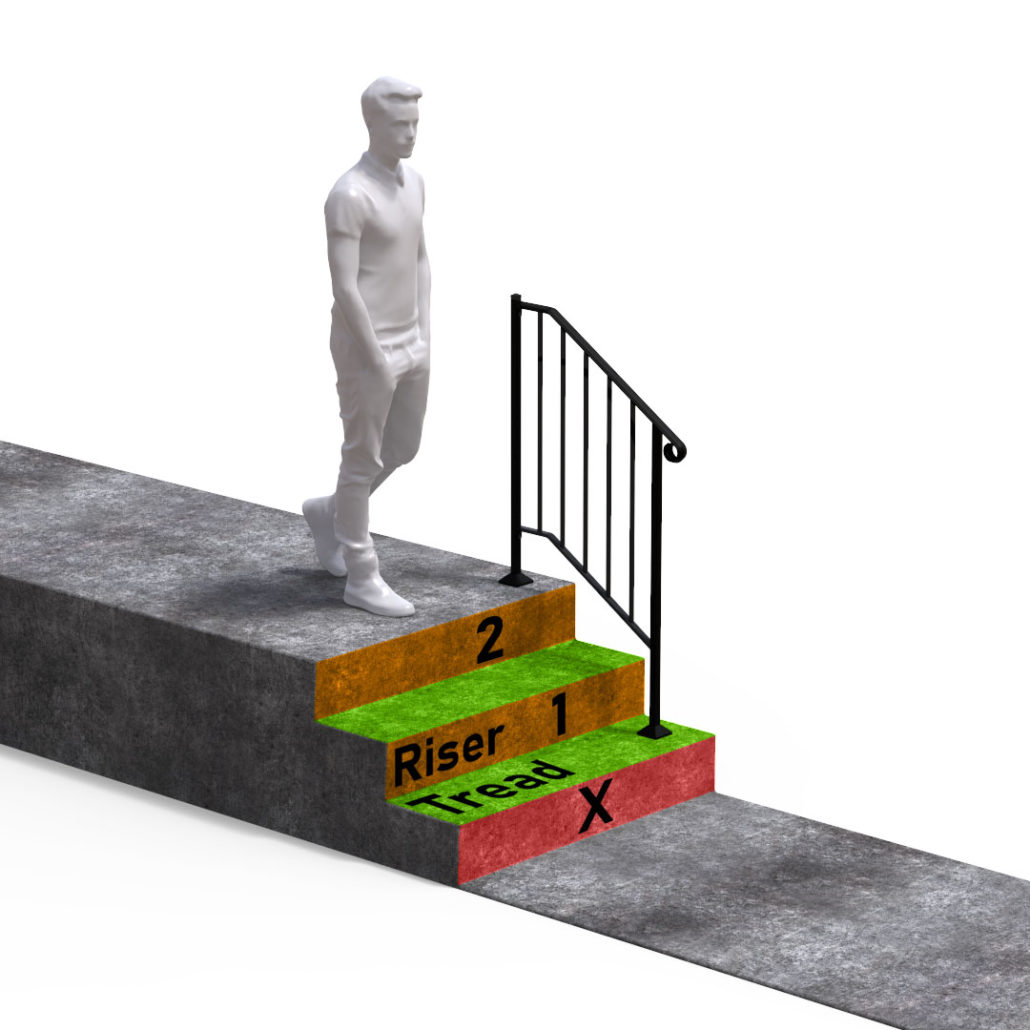

Newel #2 handrail will fit these stair layouts

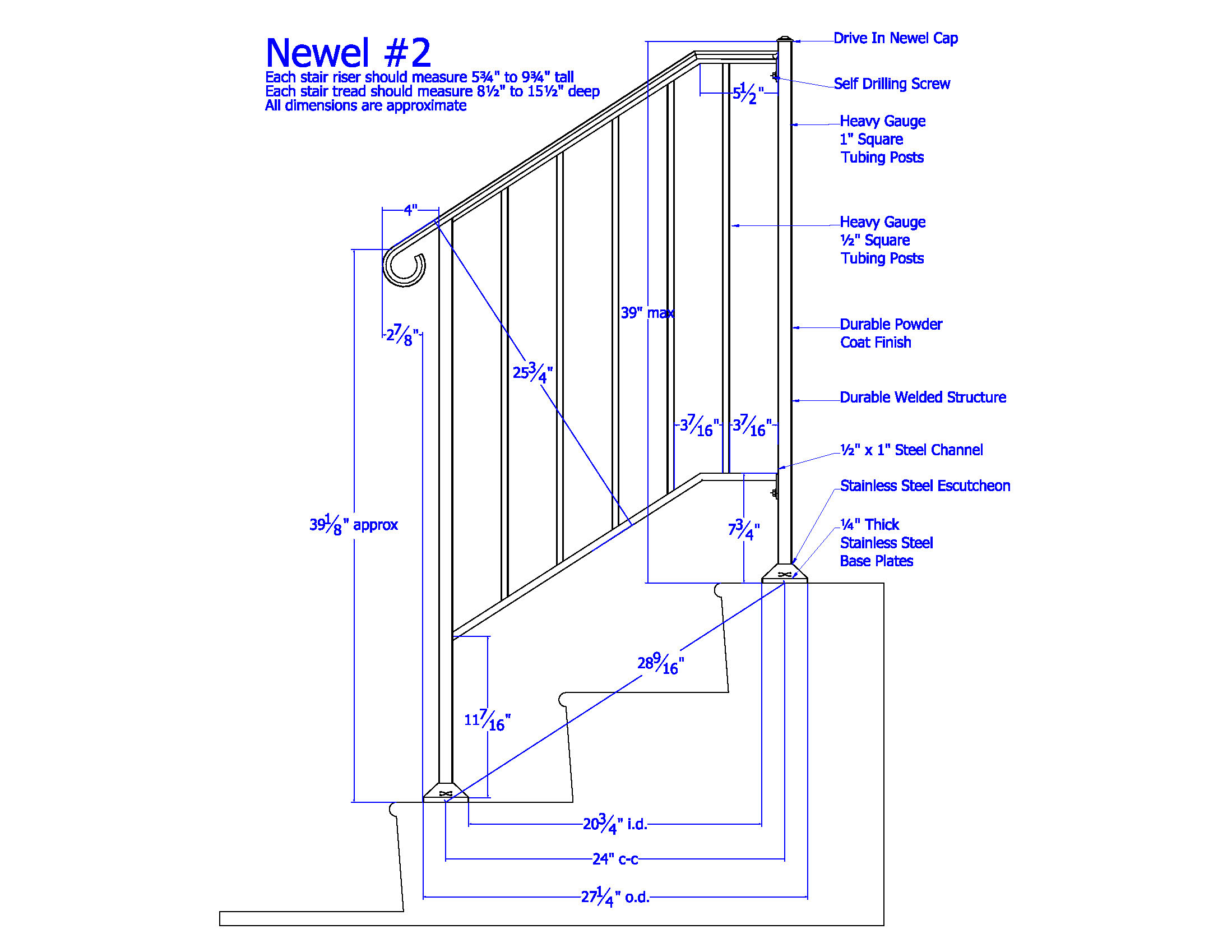

Your stair measurements should be…

  • 2 Stair Risers 5¾” to 9¾” Tall
  • 1 Stair Tread 8½” to 15½” Deep

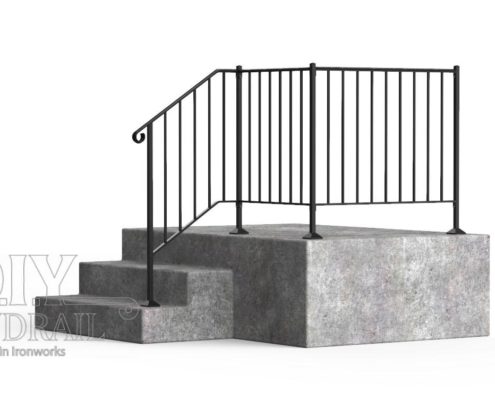

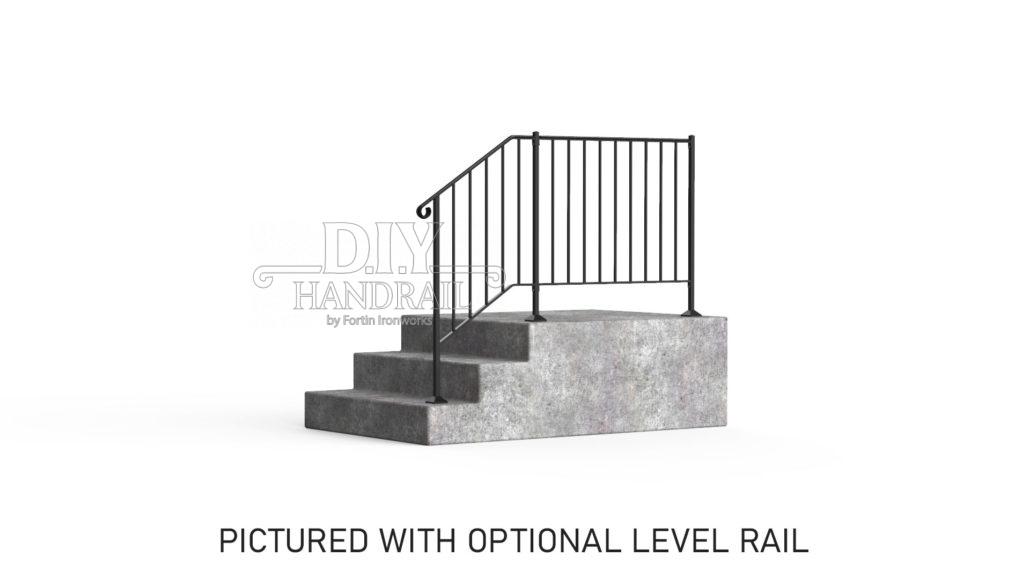

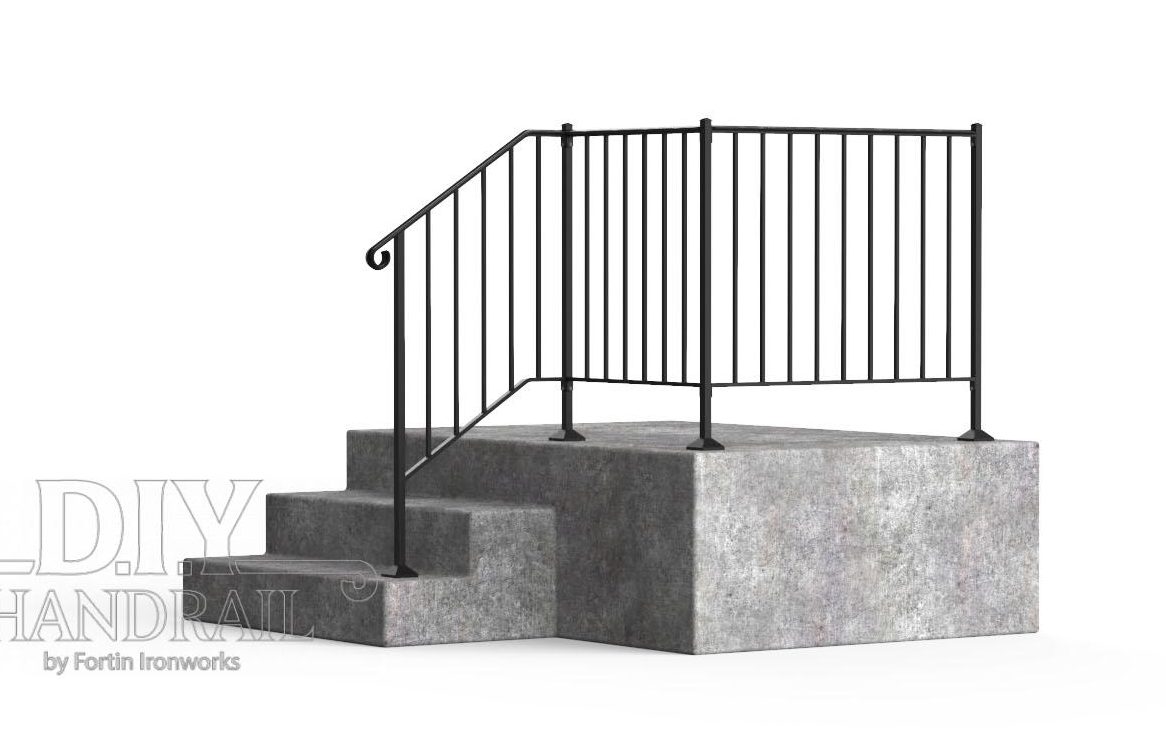

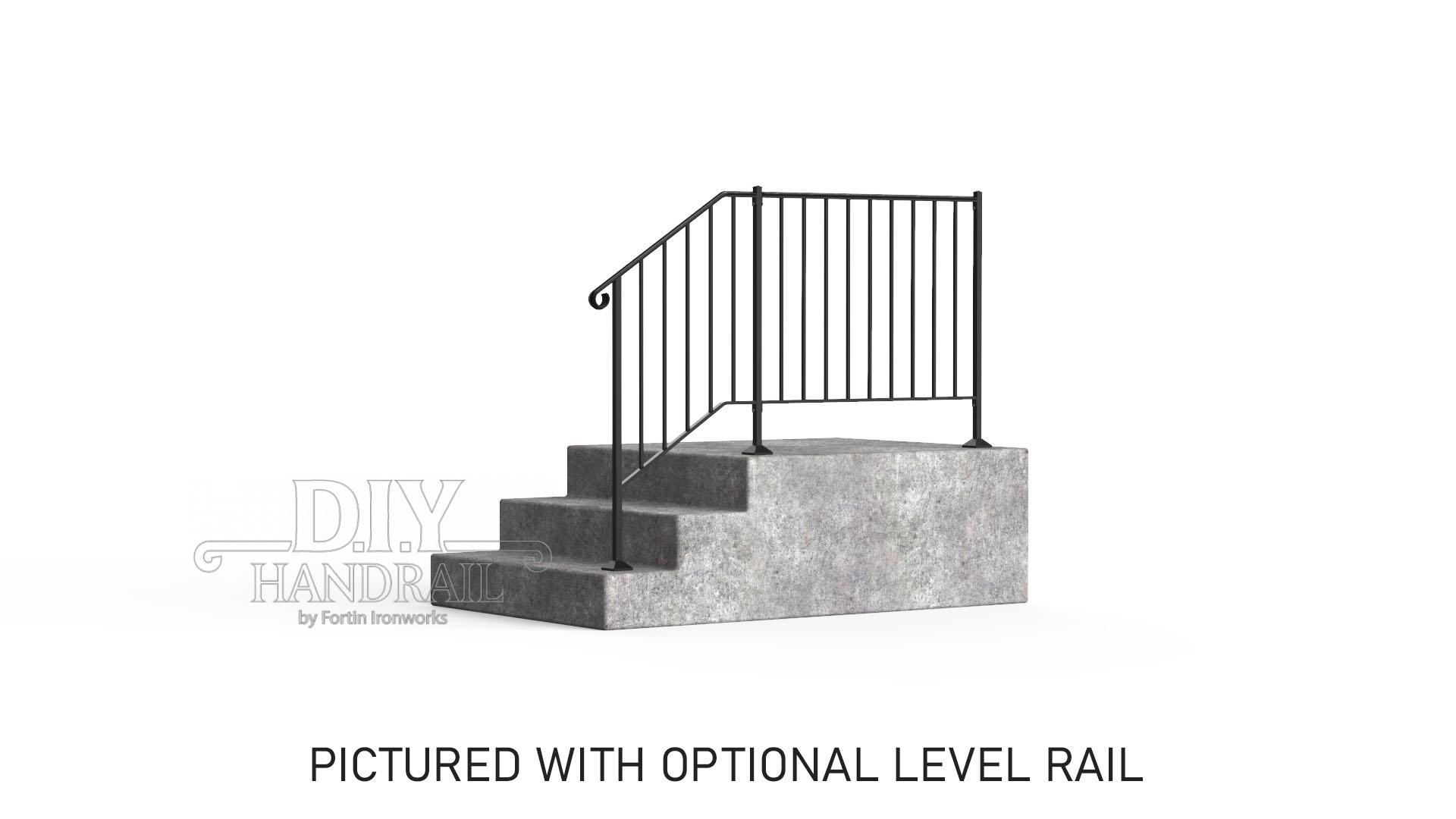

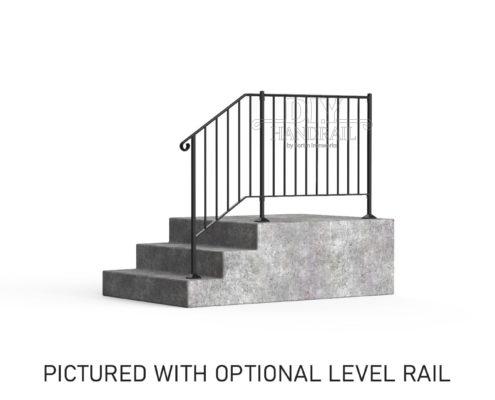

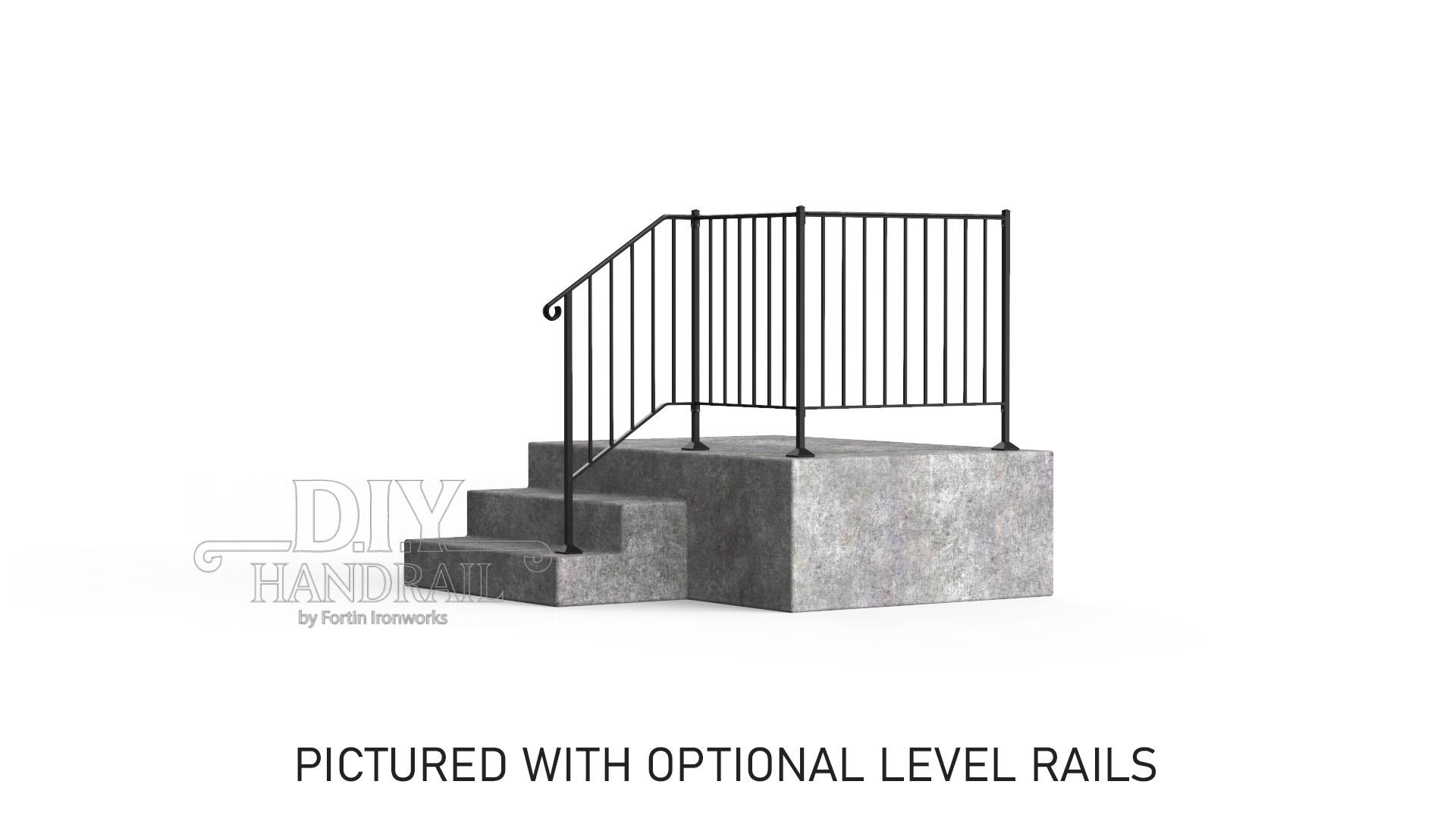

This handrail can be used in conjunction with Newel style step rails as well as additional level panels.

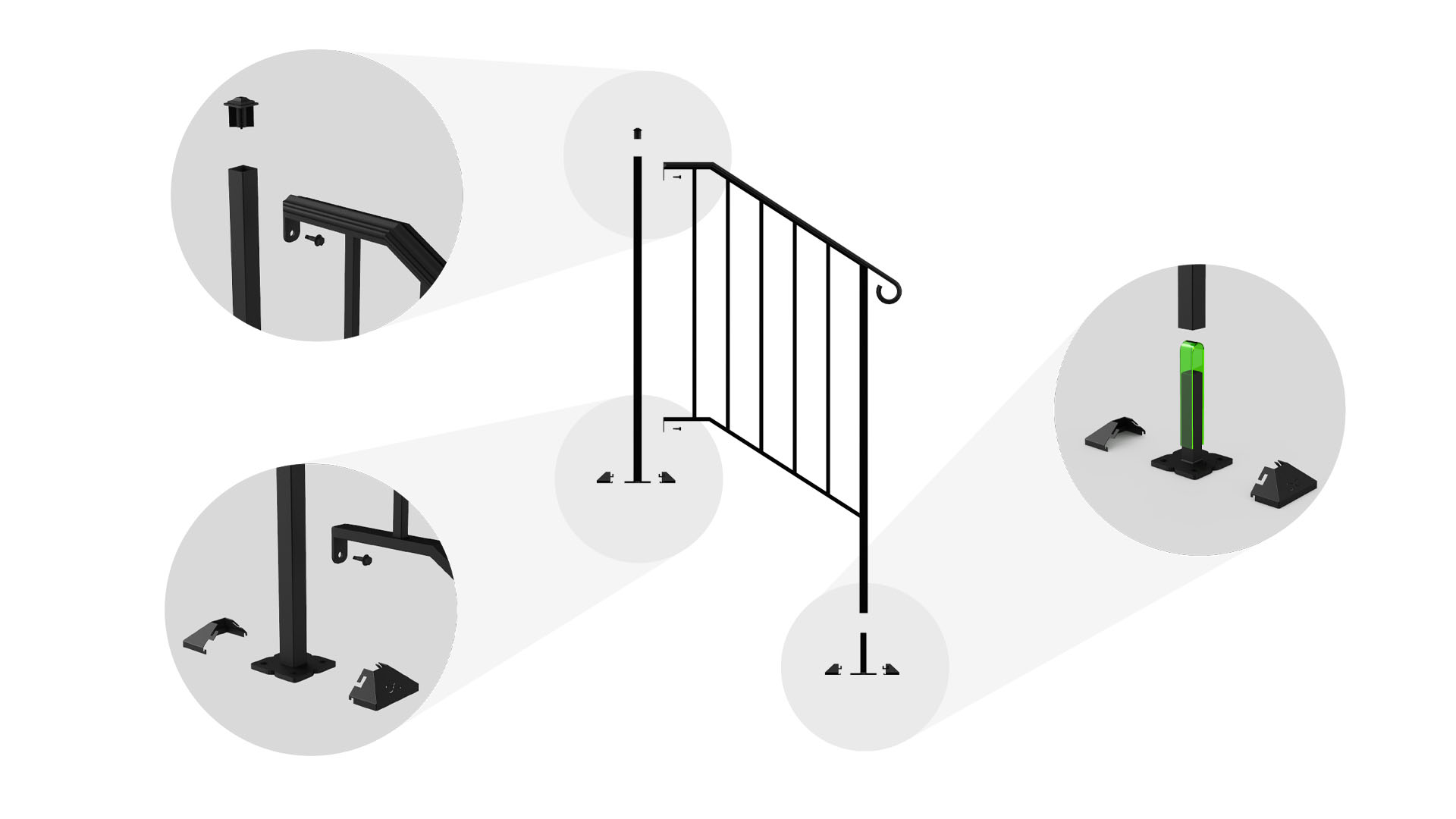

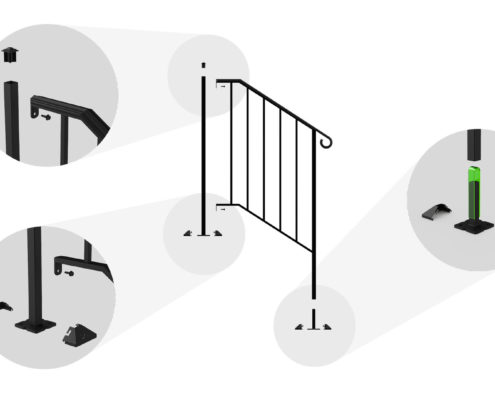

Each Newel style handrail kit comes with the following..

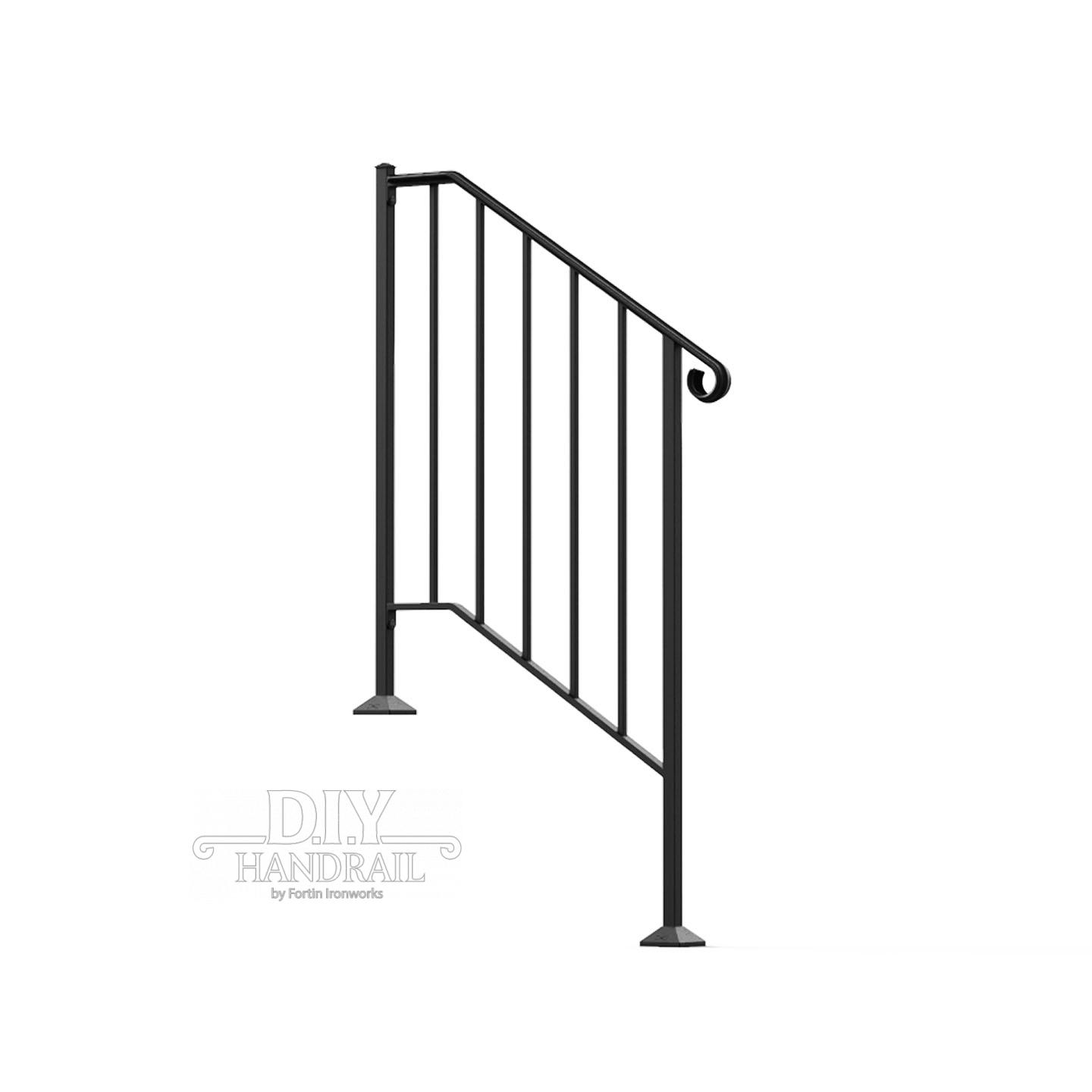

  • 1 – Powder coated steel newel style handrail
  • 1 – Powder coated stainless steel lower post mount
  • 2 – Stainless steel base plate escutcheons
  • 2 – Snug strips
  • 1 – Powder coated steel top post with ¼” stainless steel base plate
  • 1 – Newel post top cap
  • 8 – Fasteners of your choice
  • 1 – Masonry drill bit (if  required)
  • 2 – Magnetic Driver bits – 5/16″ & 3/8″
  • 2 – Self drilling screws
  • 3 – Post shims
  • 1 – Brush-in-cap touch up paint
