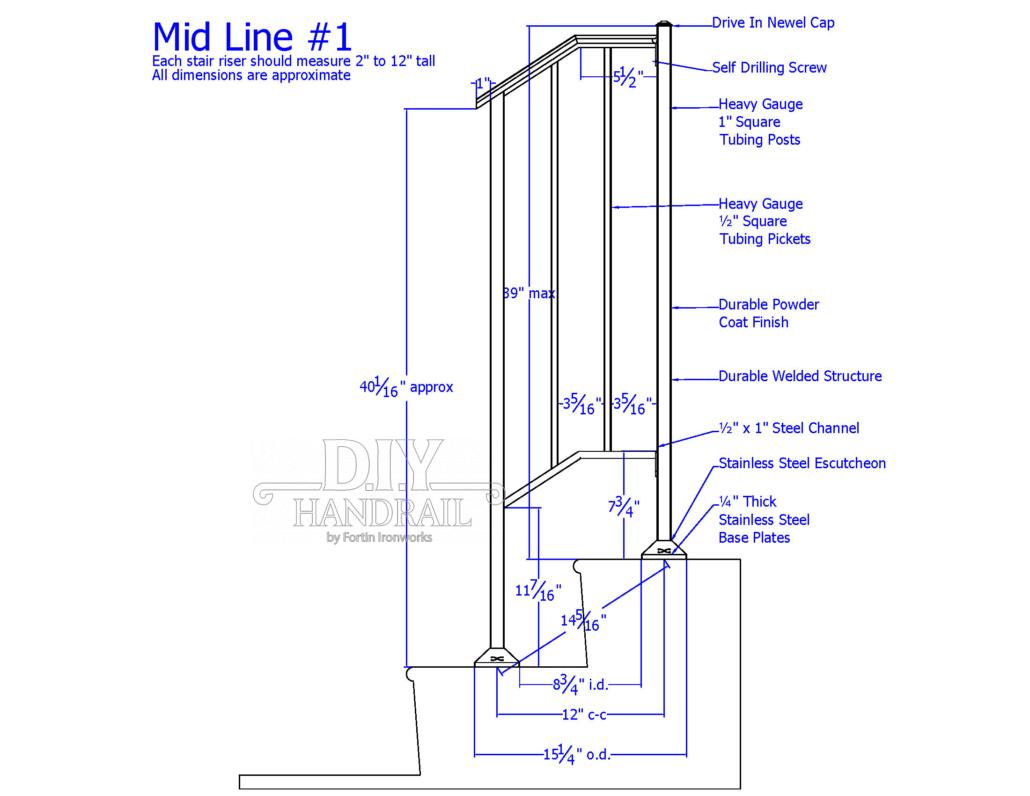

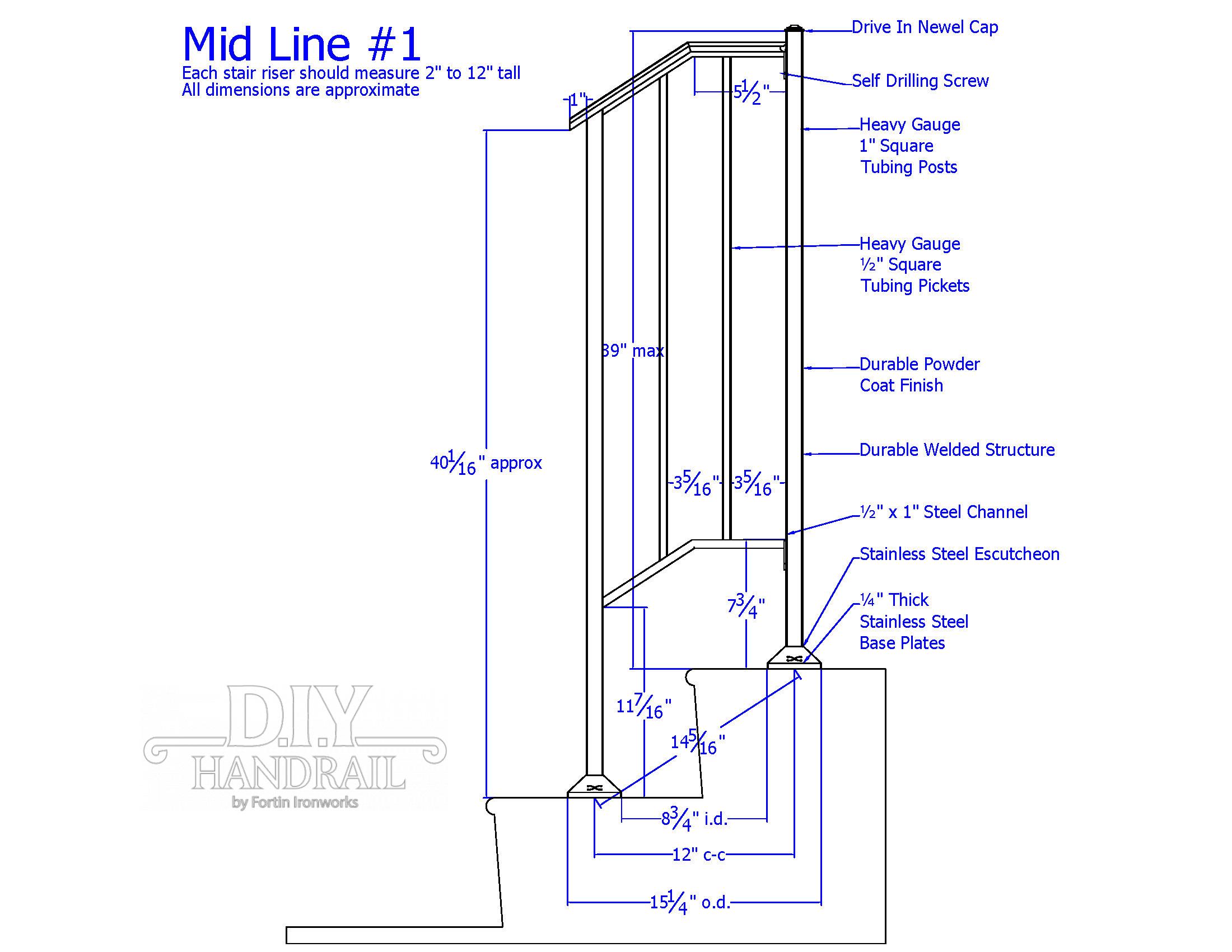

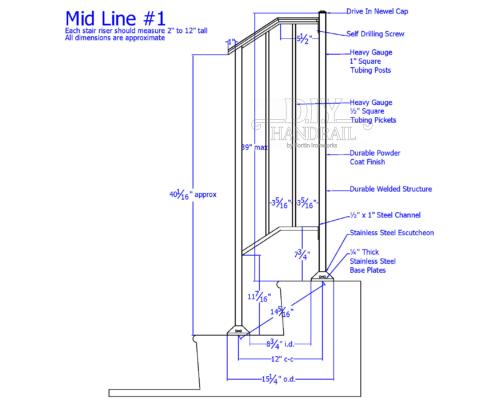

Mid Line #1

Used for attaching to Newel handrails or Level handrails to span additional stair risers

Spans 1 Stair Riser

12″  Post  to  Post  Length

Compatible with Level & Newel Step Rails

NOT Compatible with Standard Step Rails

Your Cost
Includes Shipping

$328.00

$
SKU: M1 Categories: ,
Which Fasteners Should I choose?

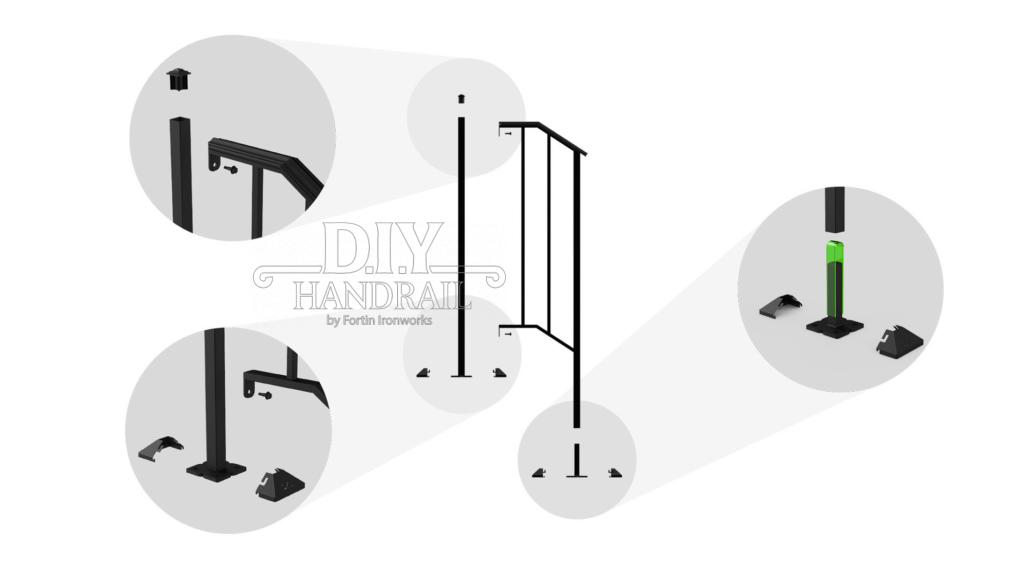

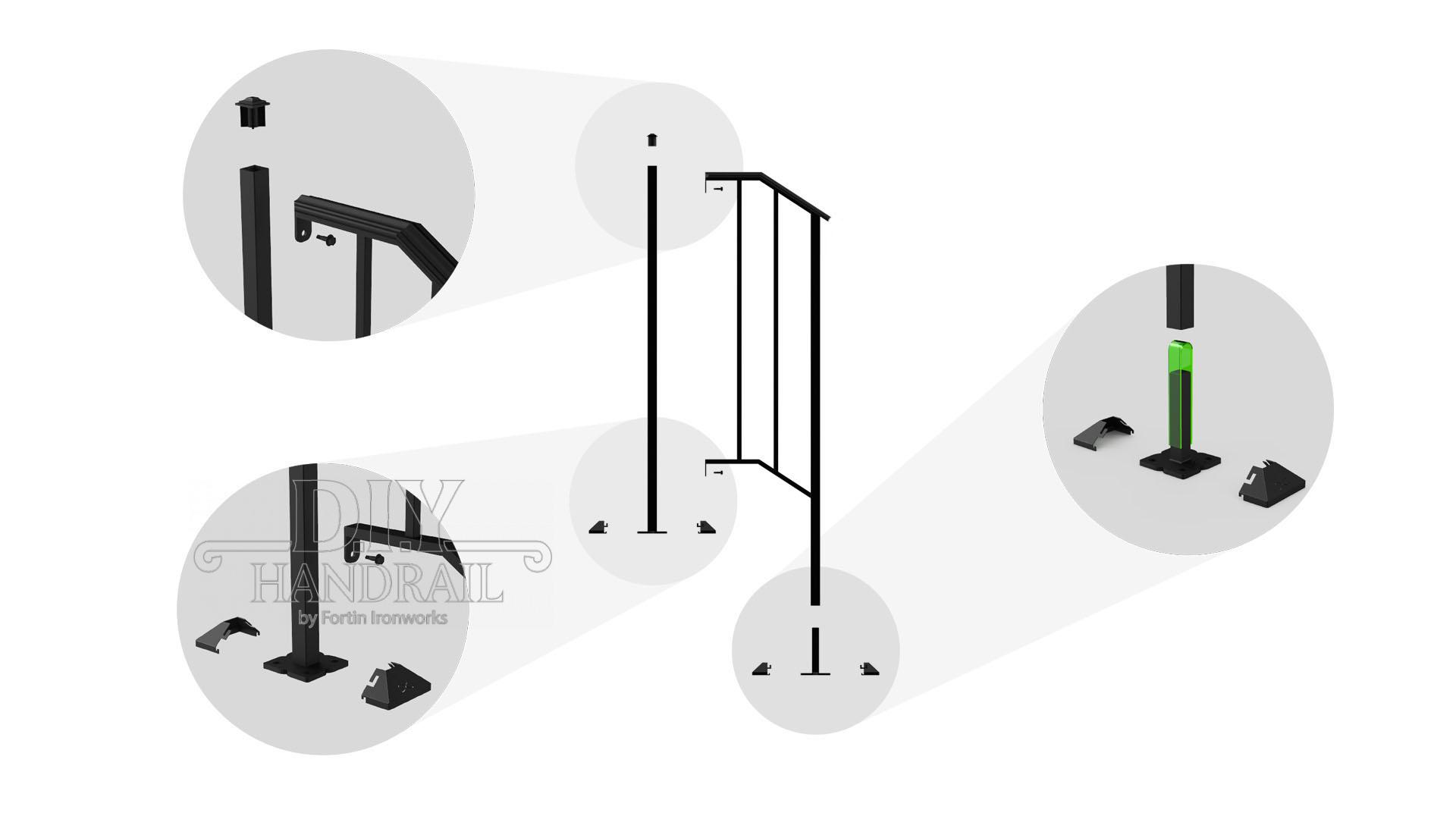

Newel Mounting Kit Contents
Newel Mounting Kit Contents
Handrail Cross Section
Handrail Cross Section

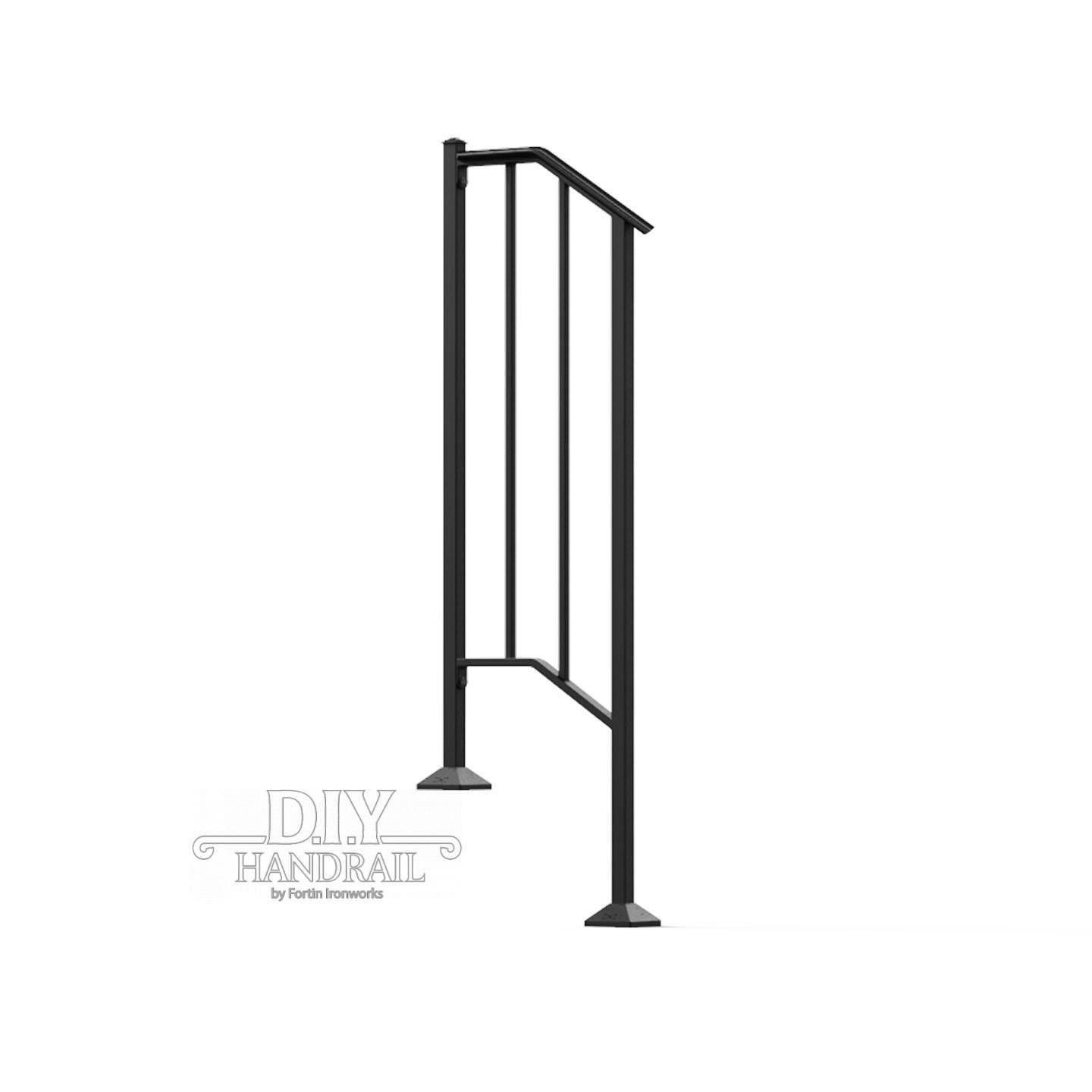

Key Features

Welded wrought iron construction
Stronger than aluminum
Rust-proof ¼” thick stainless steel base plate
Stainless steel base plate cover
Durable powder coated matte black finish
Works well indoor or outdoor

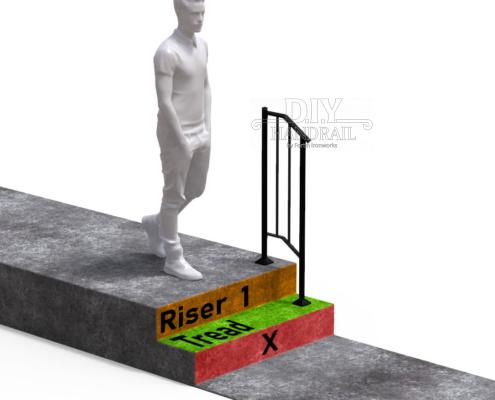

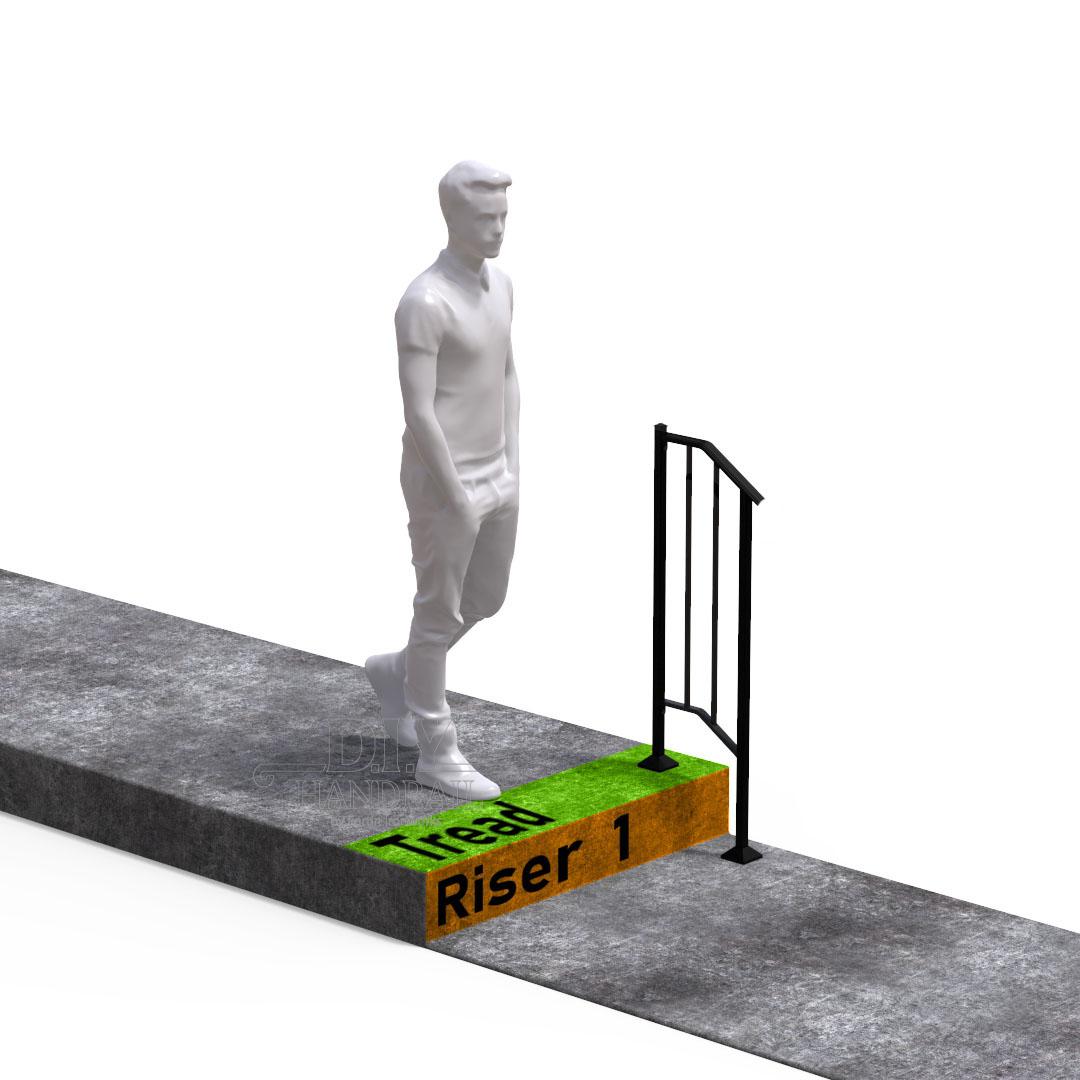

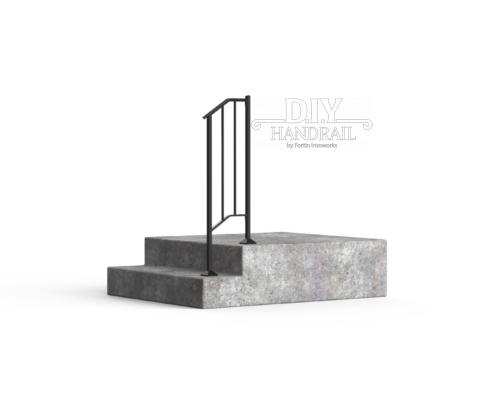

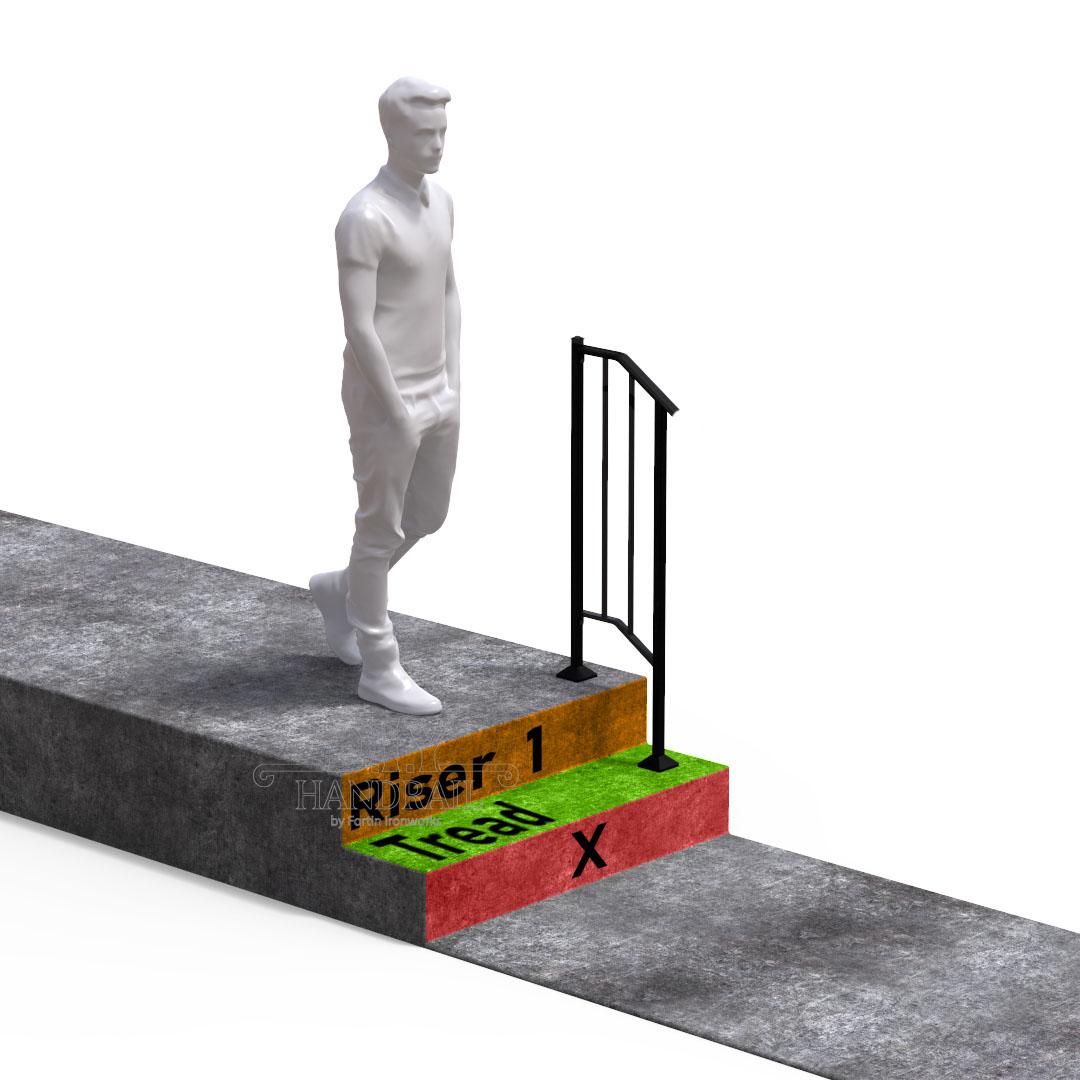

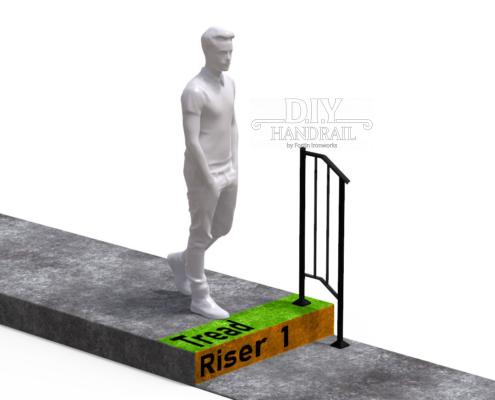

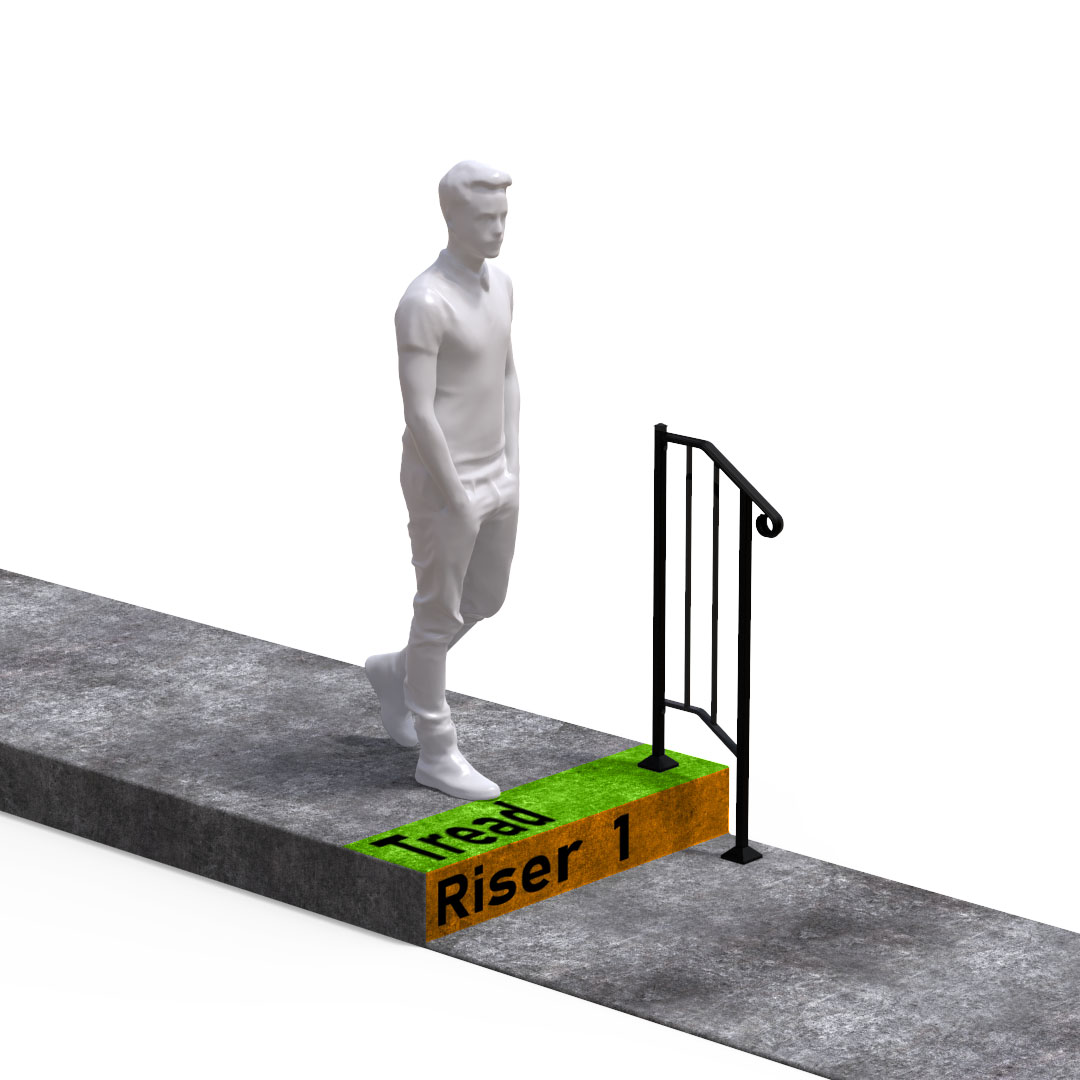

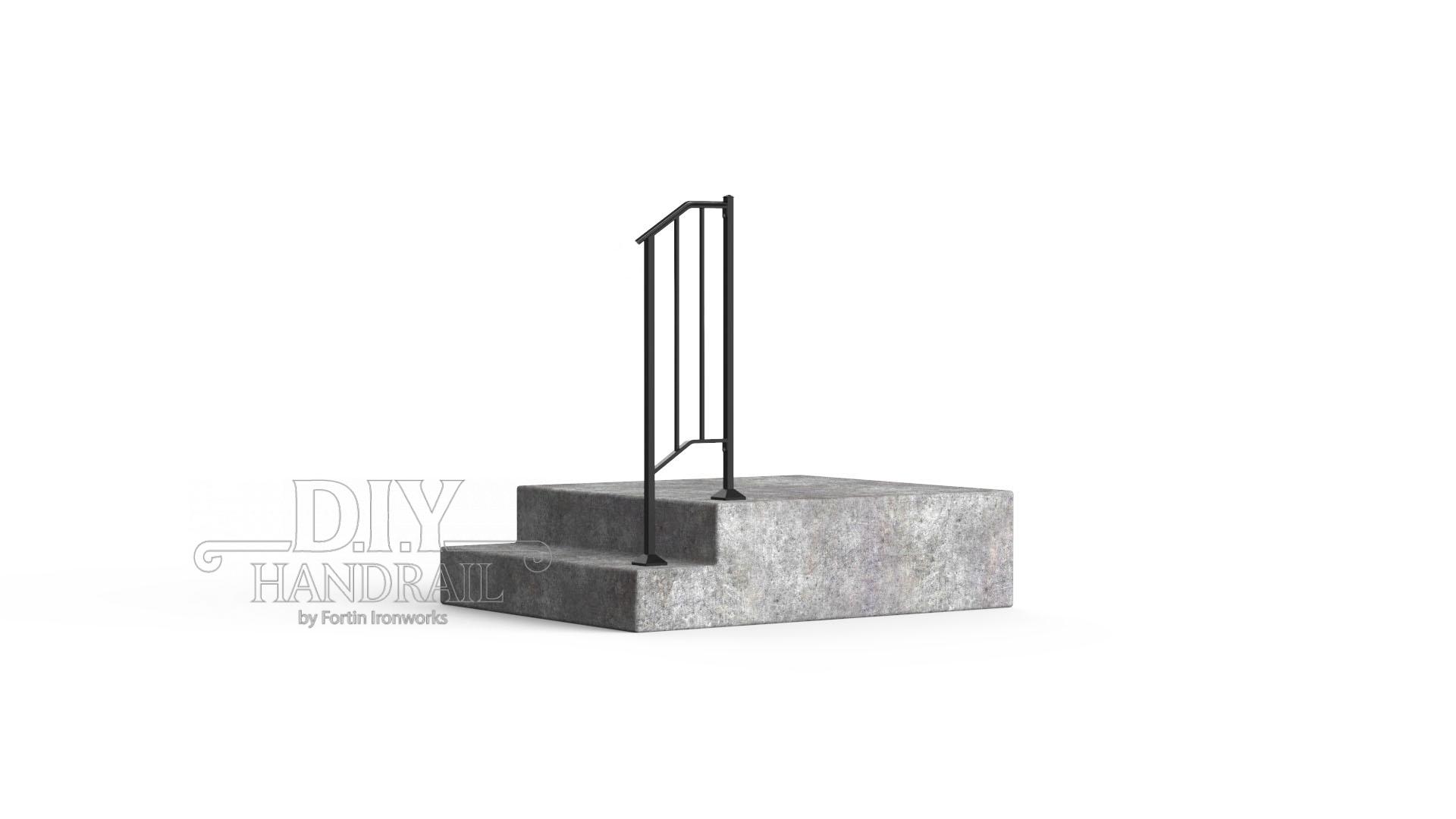

MidLine#1 Handrail Will Fit These Stair Layouts

Your stair measurements should be…

  • 1 Stair Riser 2″ to 12″ Tall

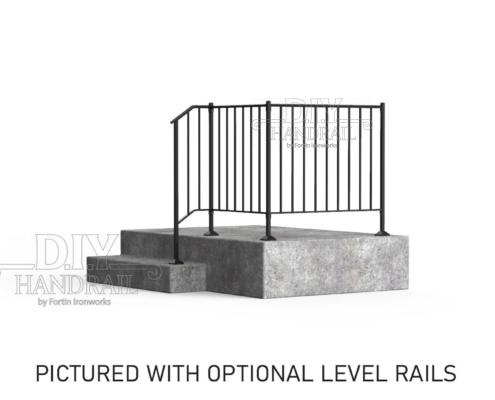

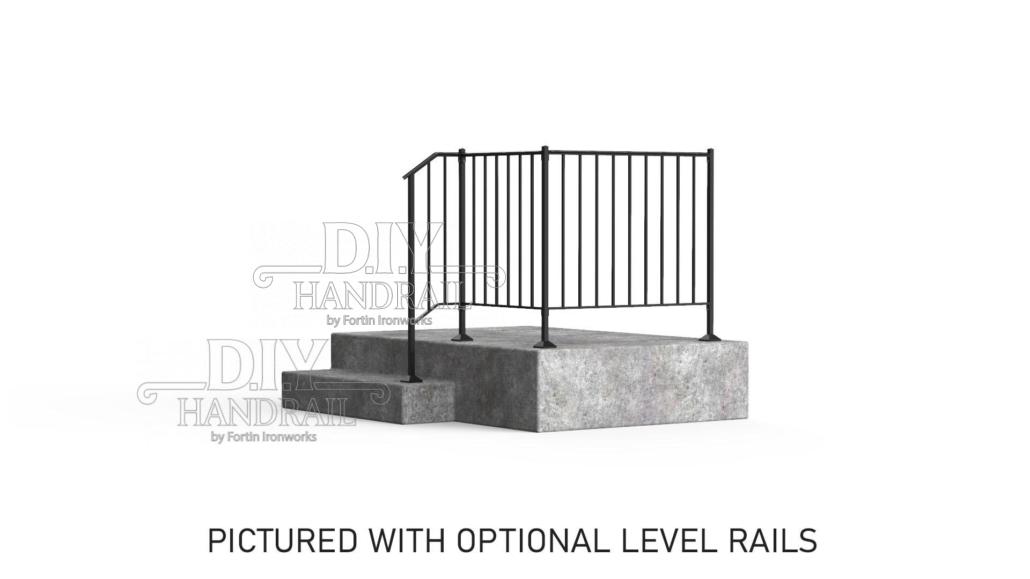

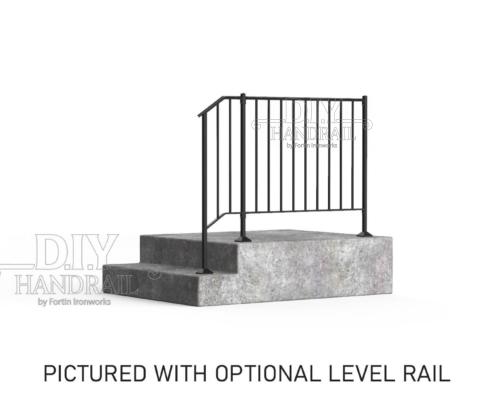

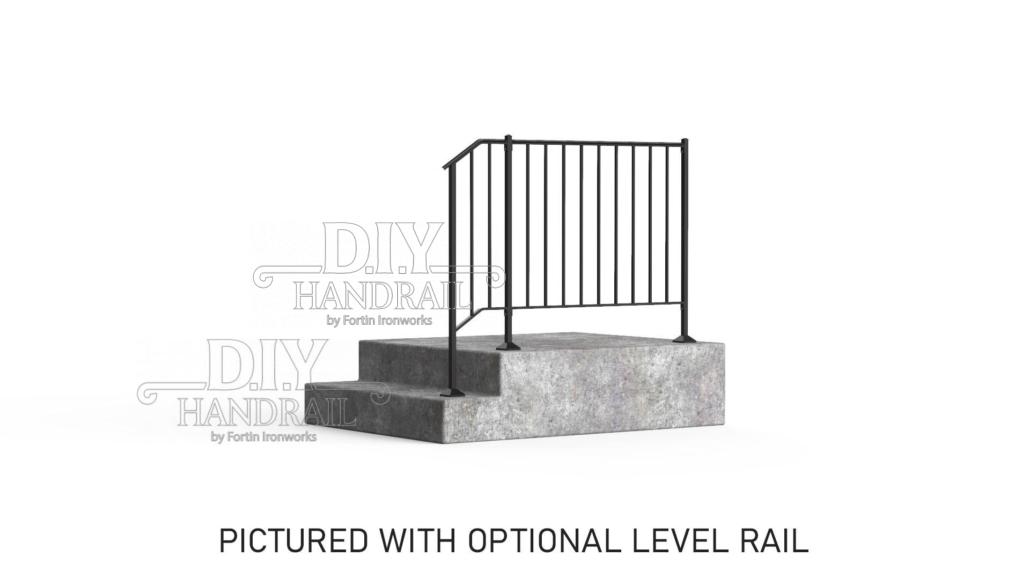

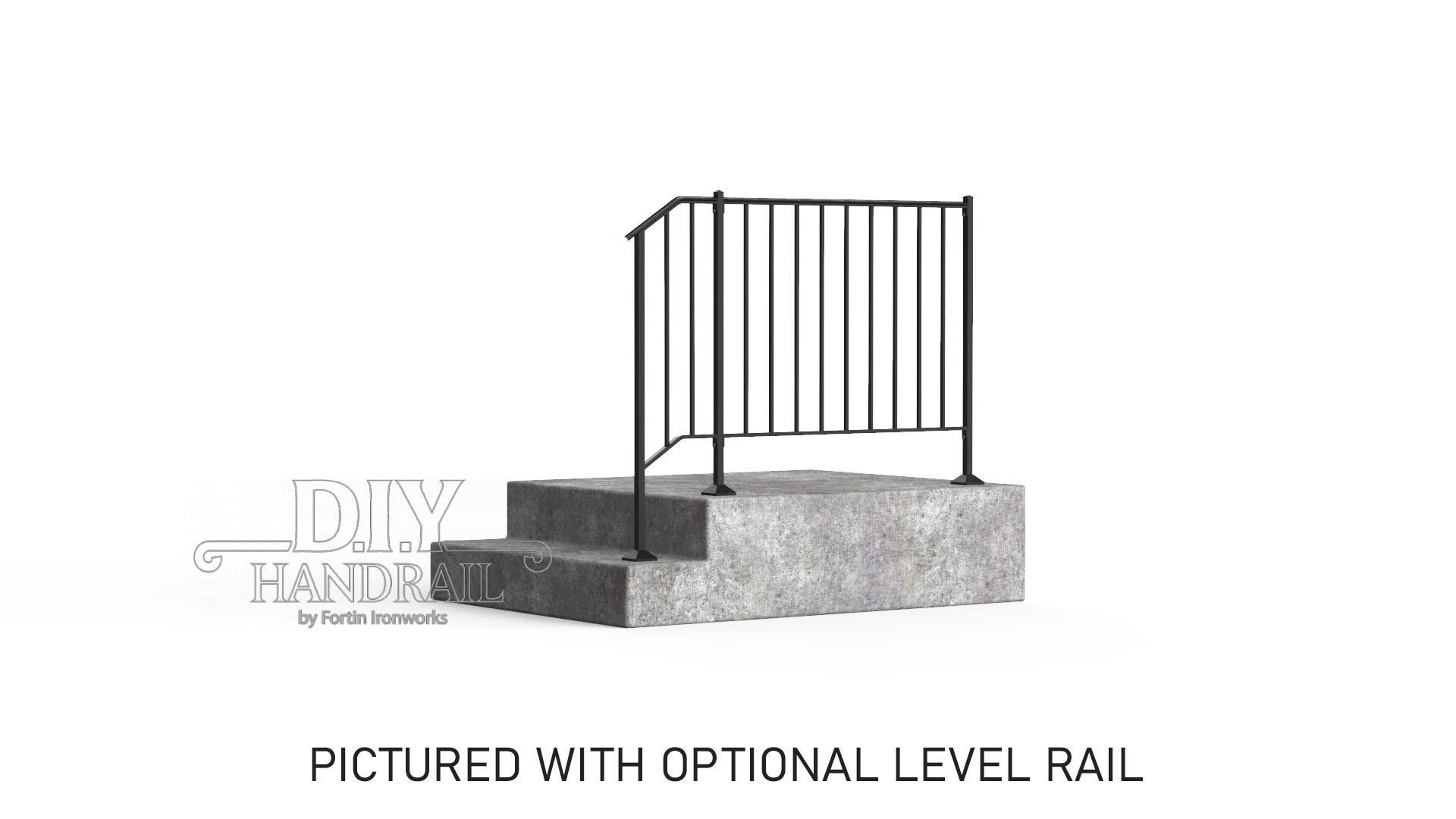

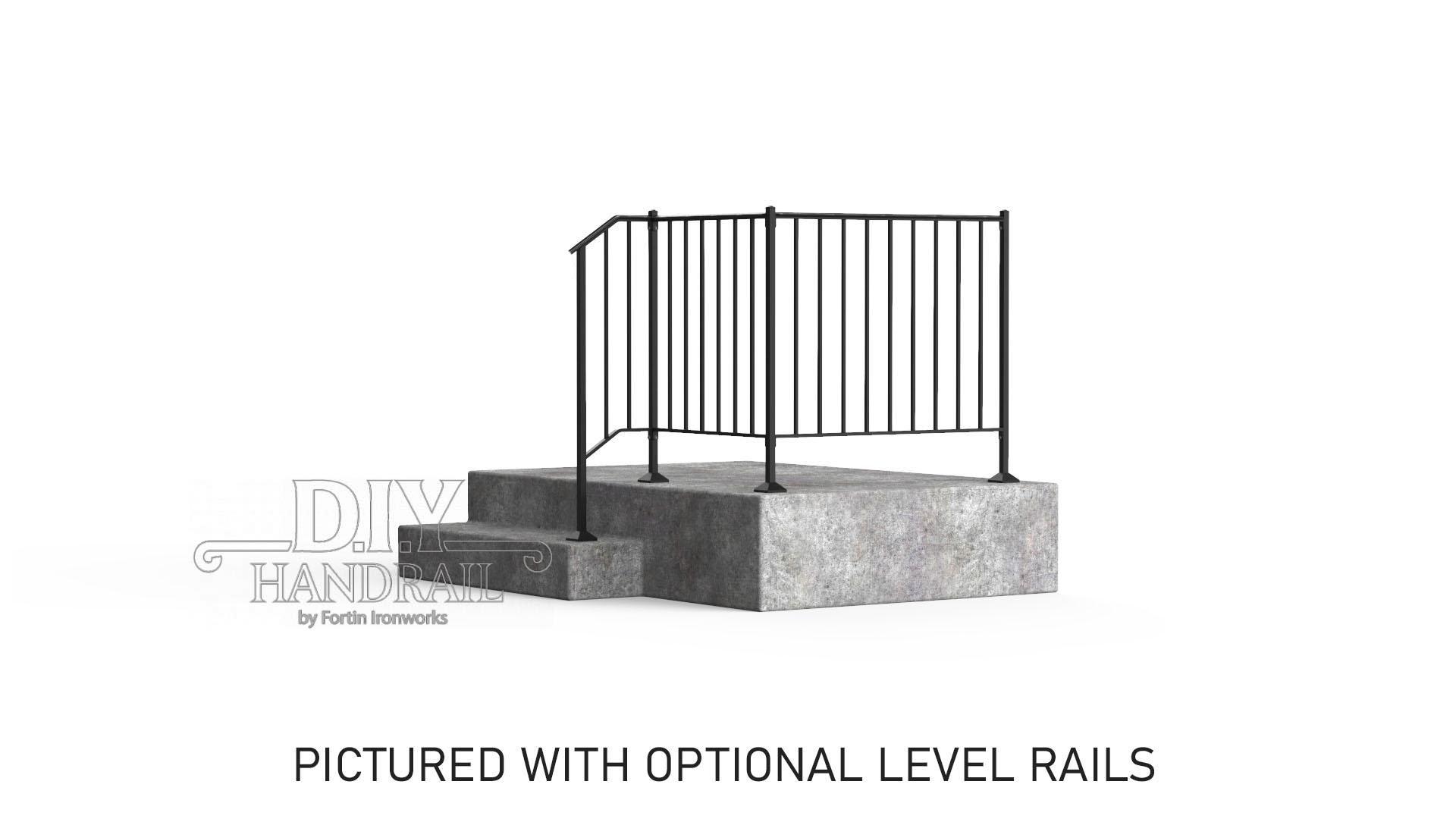

This handrail can be used in conjunction with Newel style step rails as well as additional level panels.

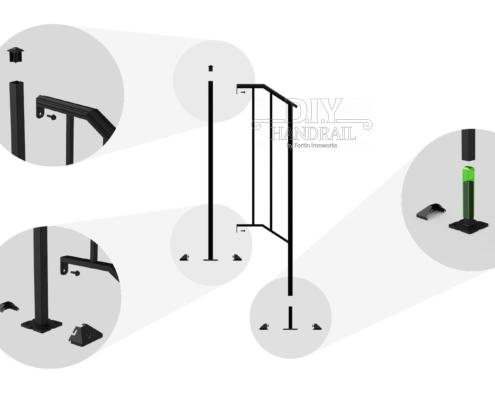

Each MidLine style handrail kit comes with the following..

  • 1 – Powder coated steel newel style handrail
  • 1 – Powder coated stainless steel lower post mount
  • 2 – Stainless steel base plate escutcheons
  • 2 – Snug strips
  • 1 – Powder coated steel top post with ¼” stainless steel base plate
  • 1 – Newel post top cap
  • 8 – Fasteners of your choice
  • 1 – Masonry drill bit (if required)
  • 2 – Magnetic Driver bits – 5/16″ & 3/8″
  • 2 – Self drilling screws
  • 3 – Post shims
  • 1 – Brush-in-cap touch up paint

Download 3-D Sketchup File – coming soon
