Installation Instructions:

Level Handrail Attached Perpendicular to a Newel Rail

Video Instructions

Written Installation Instructions

Here Are The Steps To Have A Quality Handrail Installed In About An Hour

Step 1

Align the top of the Level rail to the top of the Newel rail. Make sure the top of the rail is sitting ½” down from the top post. Use the included self drilling screws to fasten the level rail to the post.

Step 2

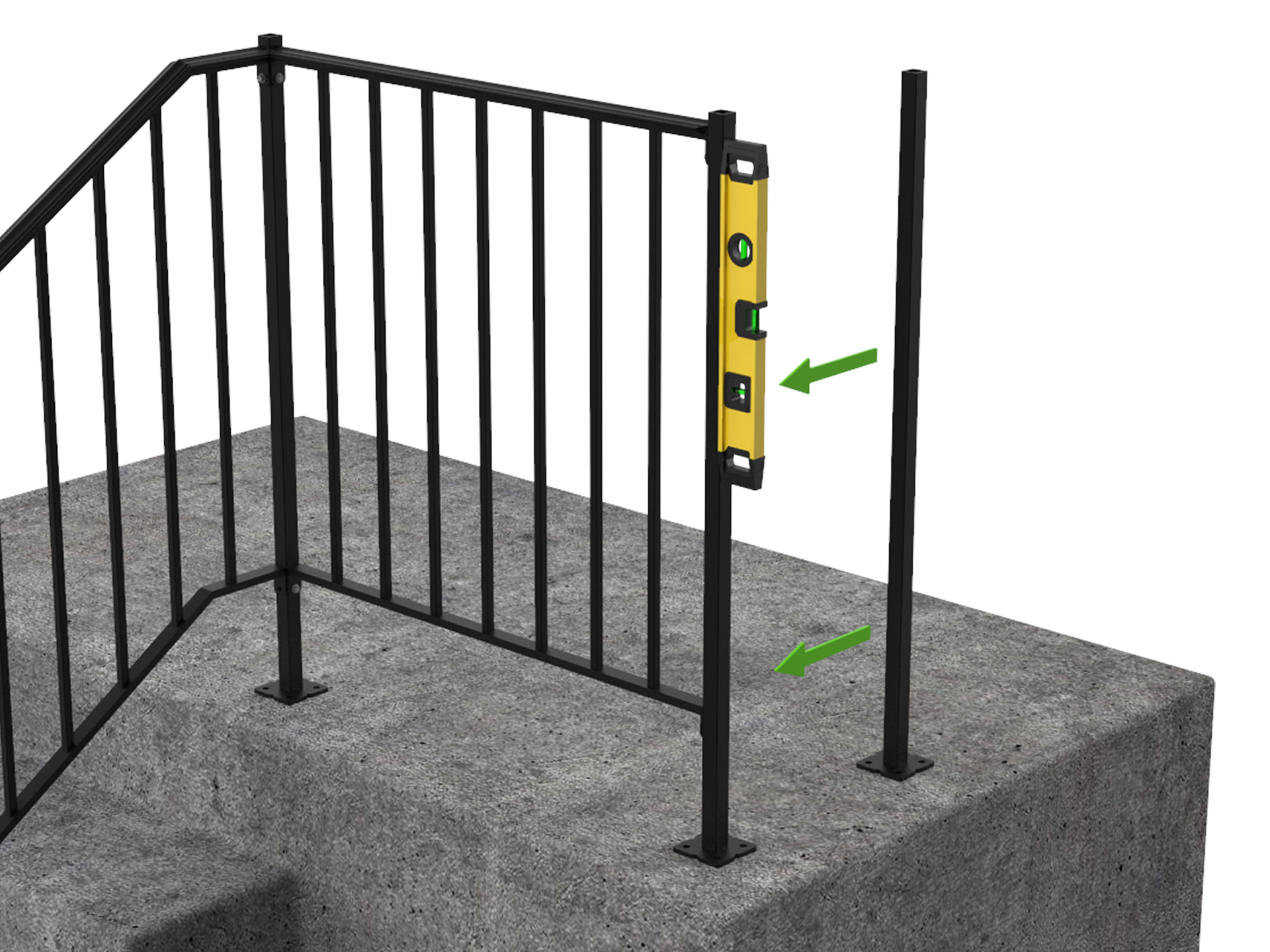

Locate the remaining post and place against the loose end of the Level rail. Use a level to ensure the post will sit plumb in all directions. The post should be the same height as the top post from the Newel rail, so material may have to be removed from this post.

Step 3

Repeat step 1 on the remaining post, making sure that the rail is still reading plumb on a level, and sitting ½” down from the top of the post. Step back and look at the assembly to make sure it looks correct.

Step 4

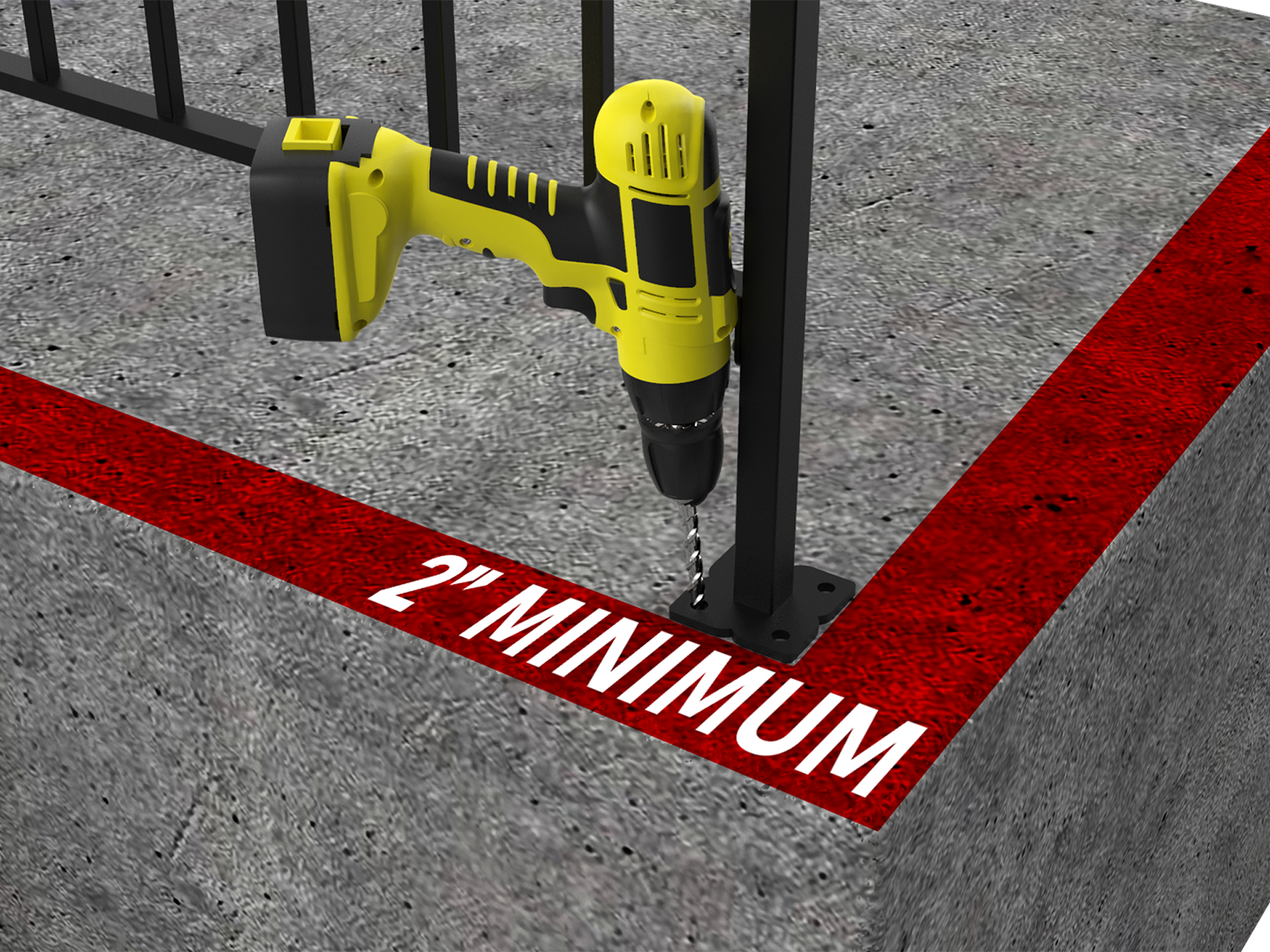

Make sure the posts are sitting a minimum of 2” from each edge of the steps. Using a drill fitted with the included drill bit, drill through one of the holes on the post mount. Ensure you are drilling deep enough to accommodate the length of your fastener. For concrete, drill 3” deep, and for brick drill 6” deep.

Step 5

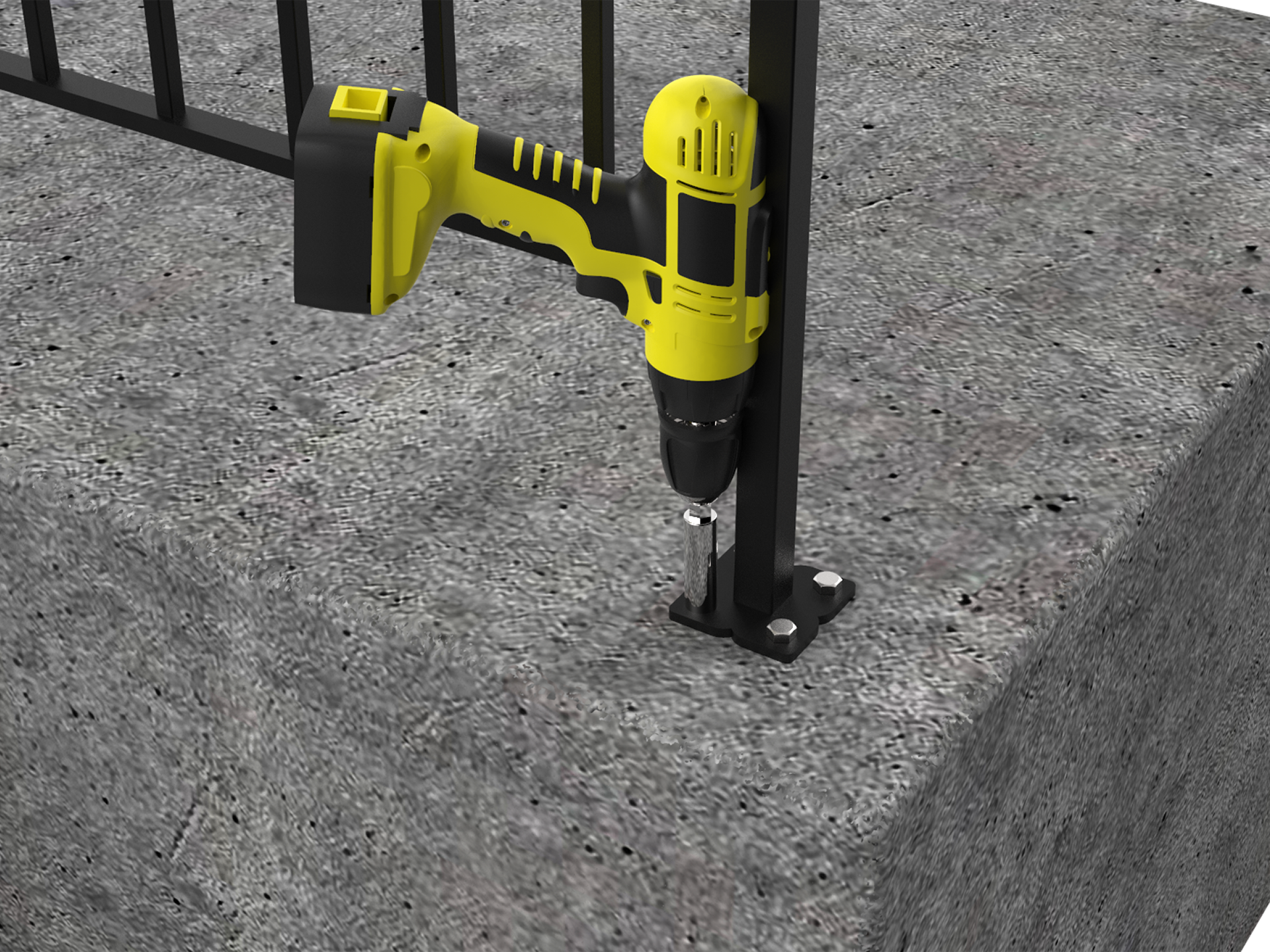

Select fasteners, appropriate for your stair material. Secure the fastener into the hole that you have just drilled. Be sure to drill one hole and secure one fastener at a time. If the post is no longer level after fastening, loosen fasteners, place the included shims under the post mounts until a level reads plumb. Re-snug the fasteners.

Step 6

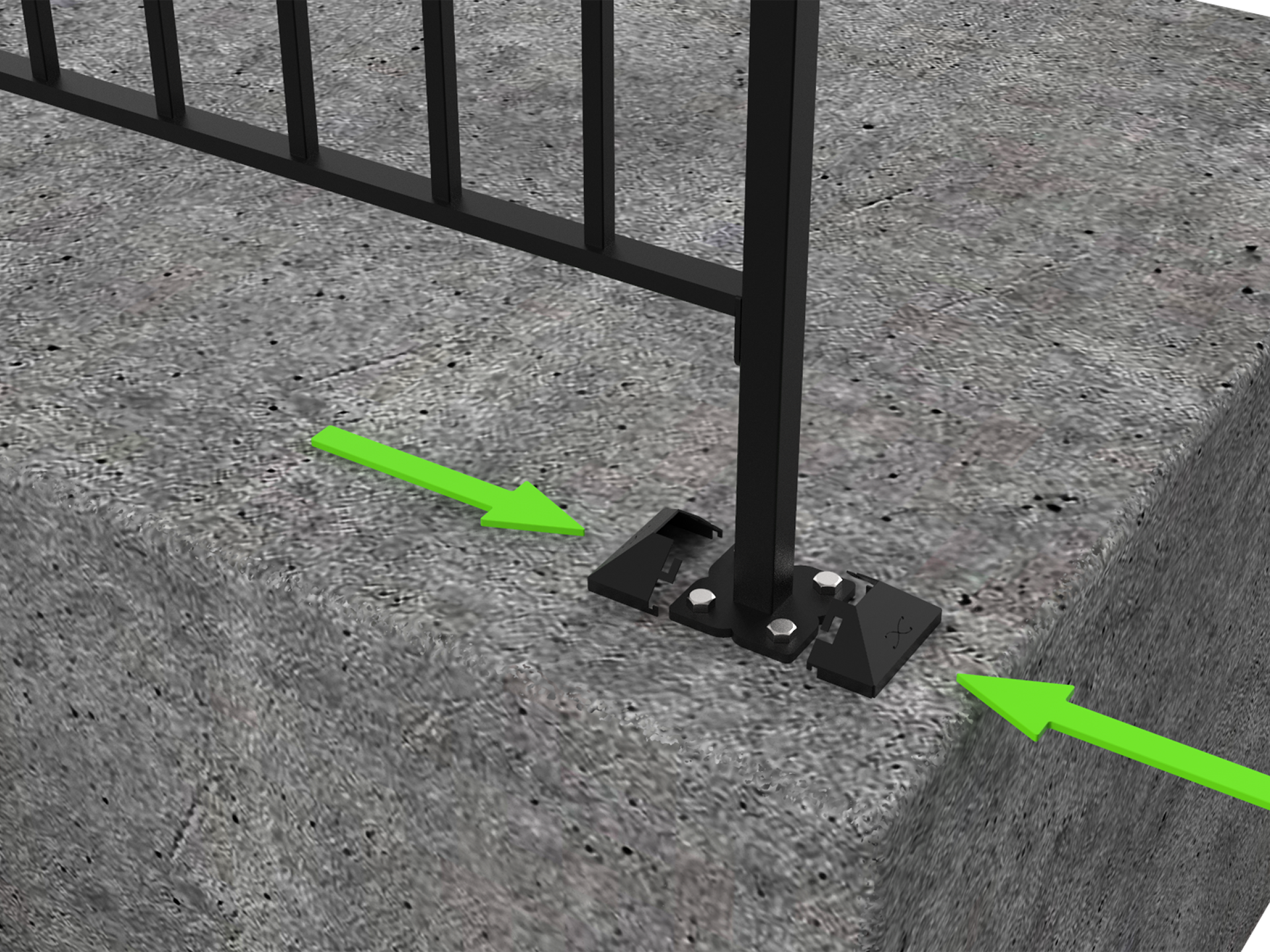

Install the stainless steel escutcheons over the post mount bracket plates

Step 7

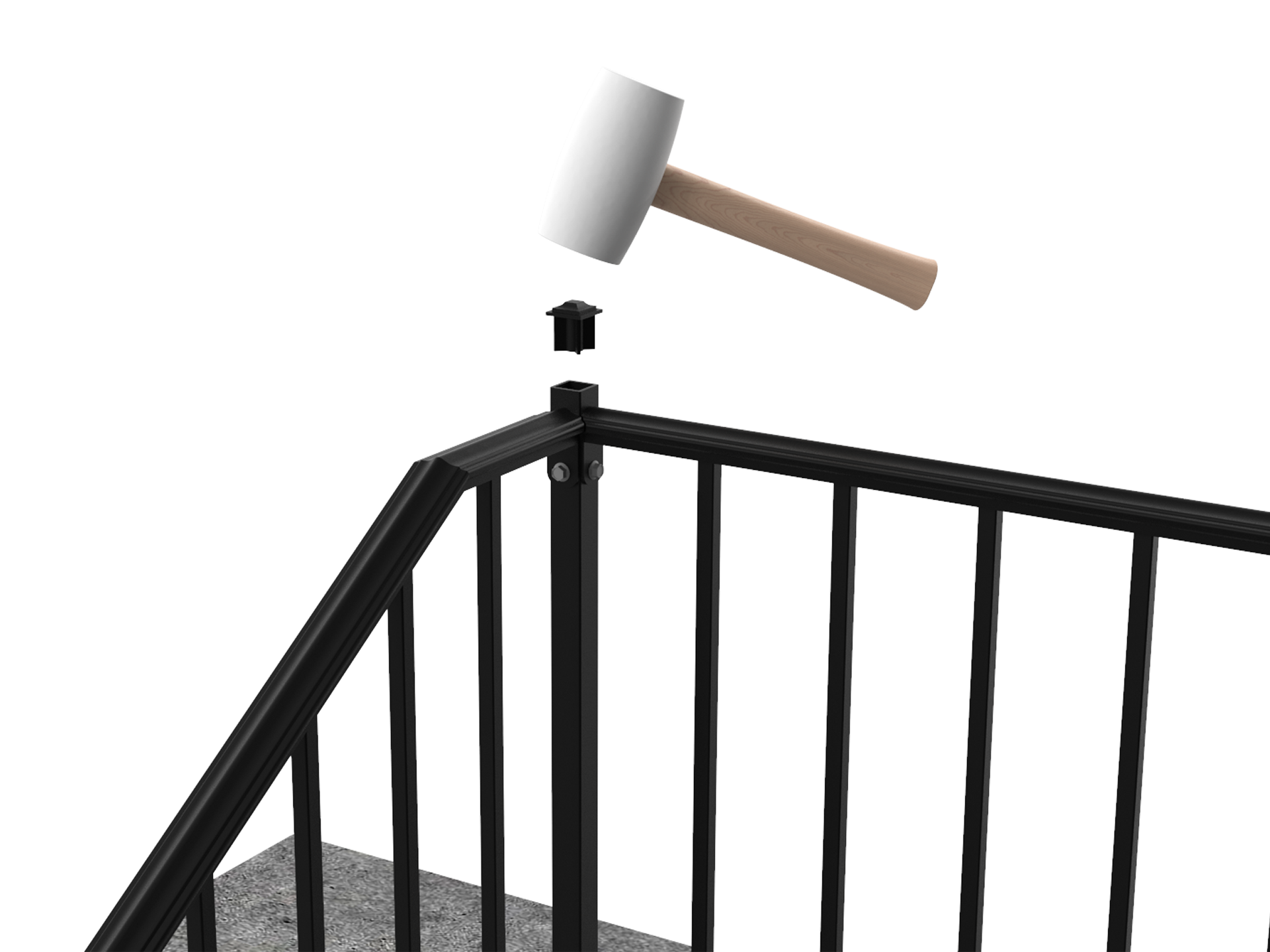

Install the newel post cap into the upper post top by gently tapping it in with a rubber mallet.
